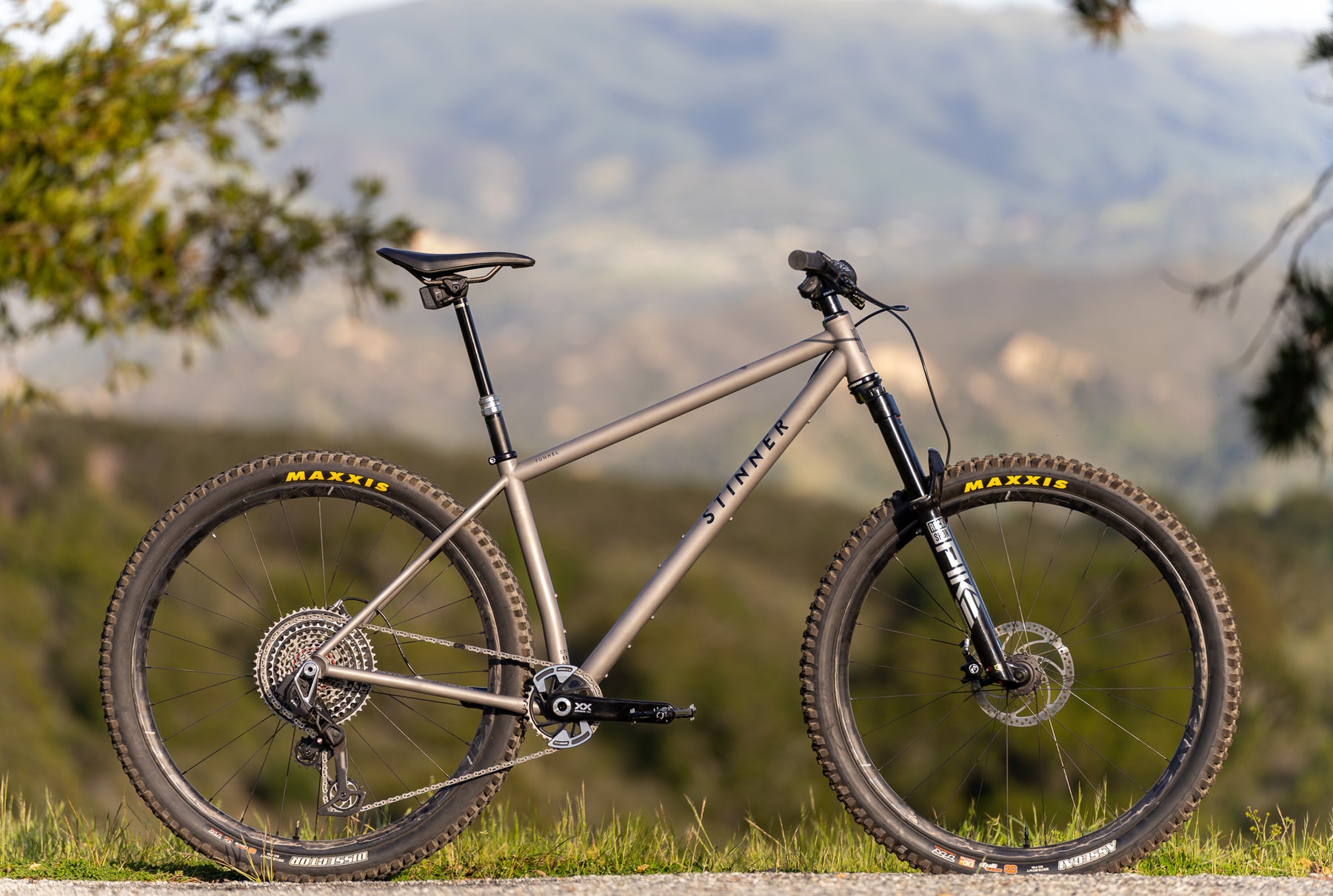

Tunnel Podium
Tunnel isn’t just a ride — it’s a challenge carved into the mountains above Santa Barbara. Rutted, raw, and relentlessly steep, it’s a trail that demands skill, commitment, and a bike built to deliver. It’s the kind of place that forges better riders — and better bikes. That ethos inspires the Stinner Tunnel line. Whether you’re just beginning your journey with the Select Series or pushing your performance with the Podium, these bikes are built with the same spirit: capable, purpose-driven, and ready for whatever lies ahead. Where it all begins. Where limits are tested.
Frameset Technical Specifications //
FRAME //
Material // Stinner Podium Titanium Tubeset - Straight Gauge
Finish // Bead Blasted Raw Ti

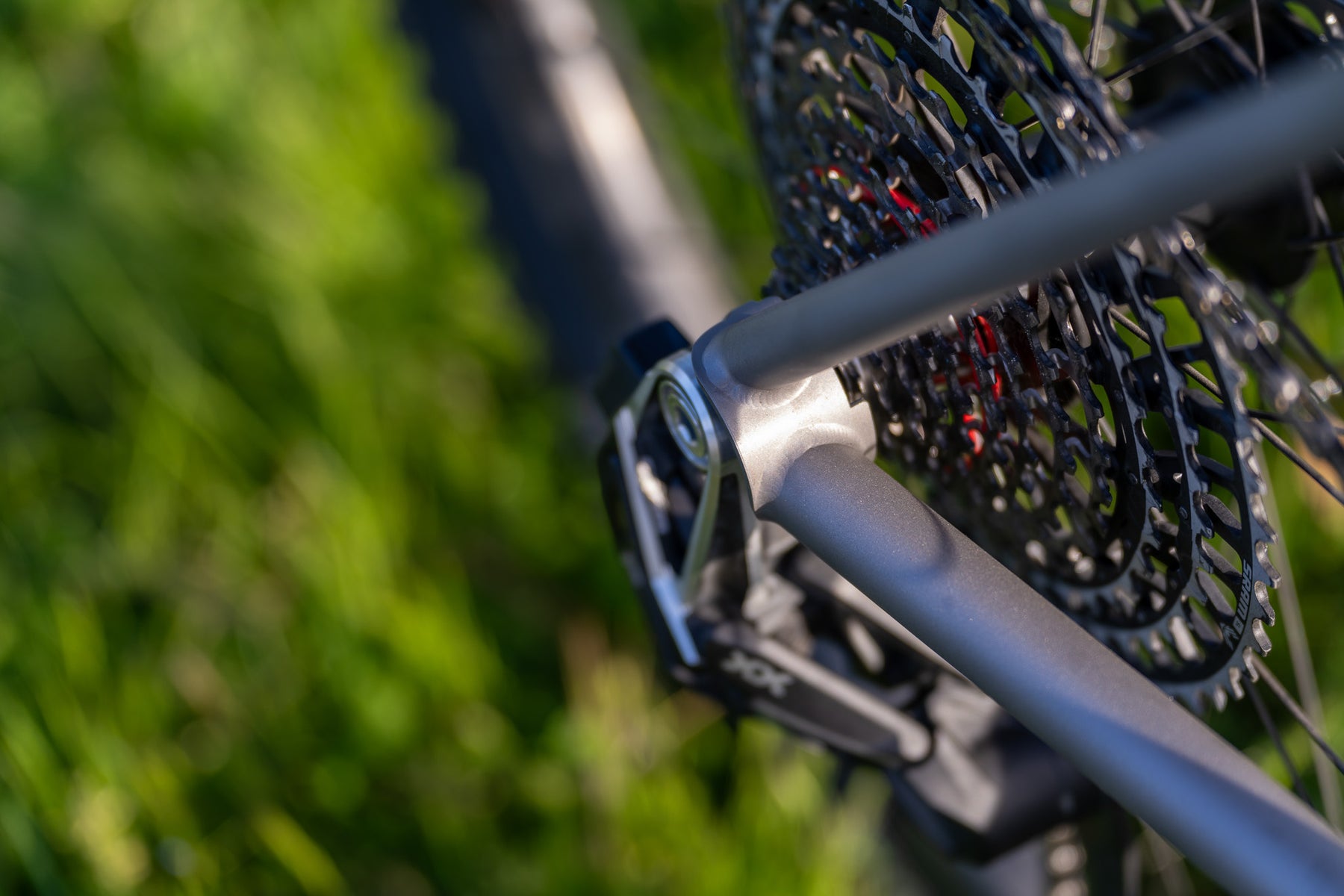

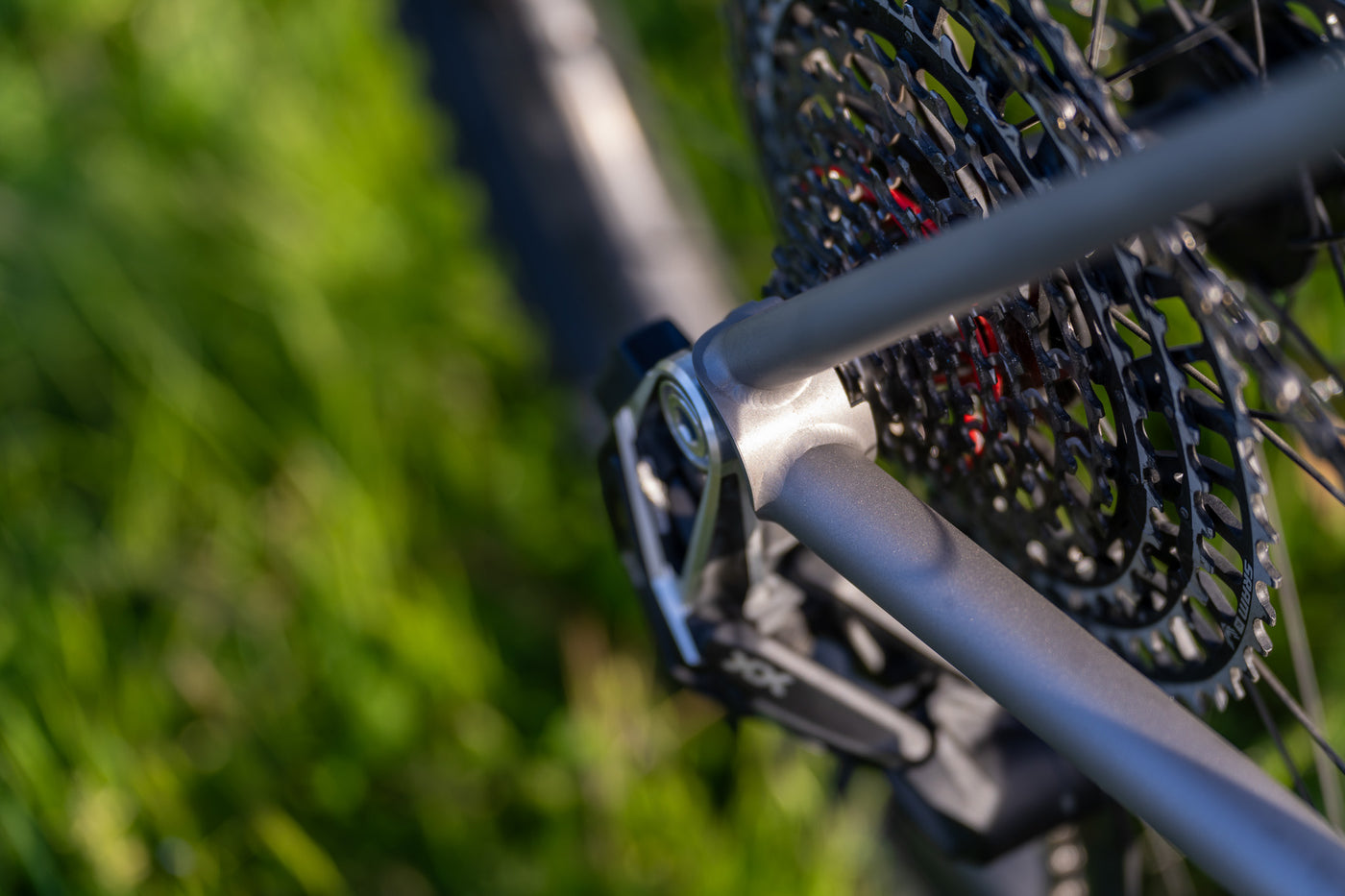

Dropouts // UDH Titanium Dropouts
Drivetrain Compatibility // SRAM AXS Eagle Transmission/Full Mount compatible
MAX Tire Clearance // 29 x 2.5"
MAX Chainring Clearance // 1x: 34t (55mm chainline)
Dropout Spacing // Boost 148 x 12mm
Rear Axle // 173mm - M12 x 1.0 - 15mm threaded portion
Brake Mount // Post Mount 160mm
MAX Rotor Size // 180mm
Brake Routing // Internal through frame - Hose enters the downtube just behind the headtube
Seatpost Diameter // 31.6mm - Wireless Dropper Compatible
Seatpost maximum insertion // Med: 205mm // M/L: 225mm // Large: 245mm // XL: 265mm

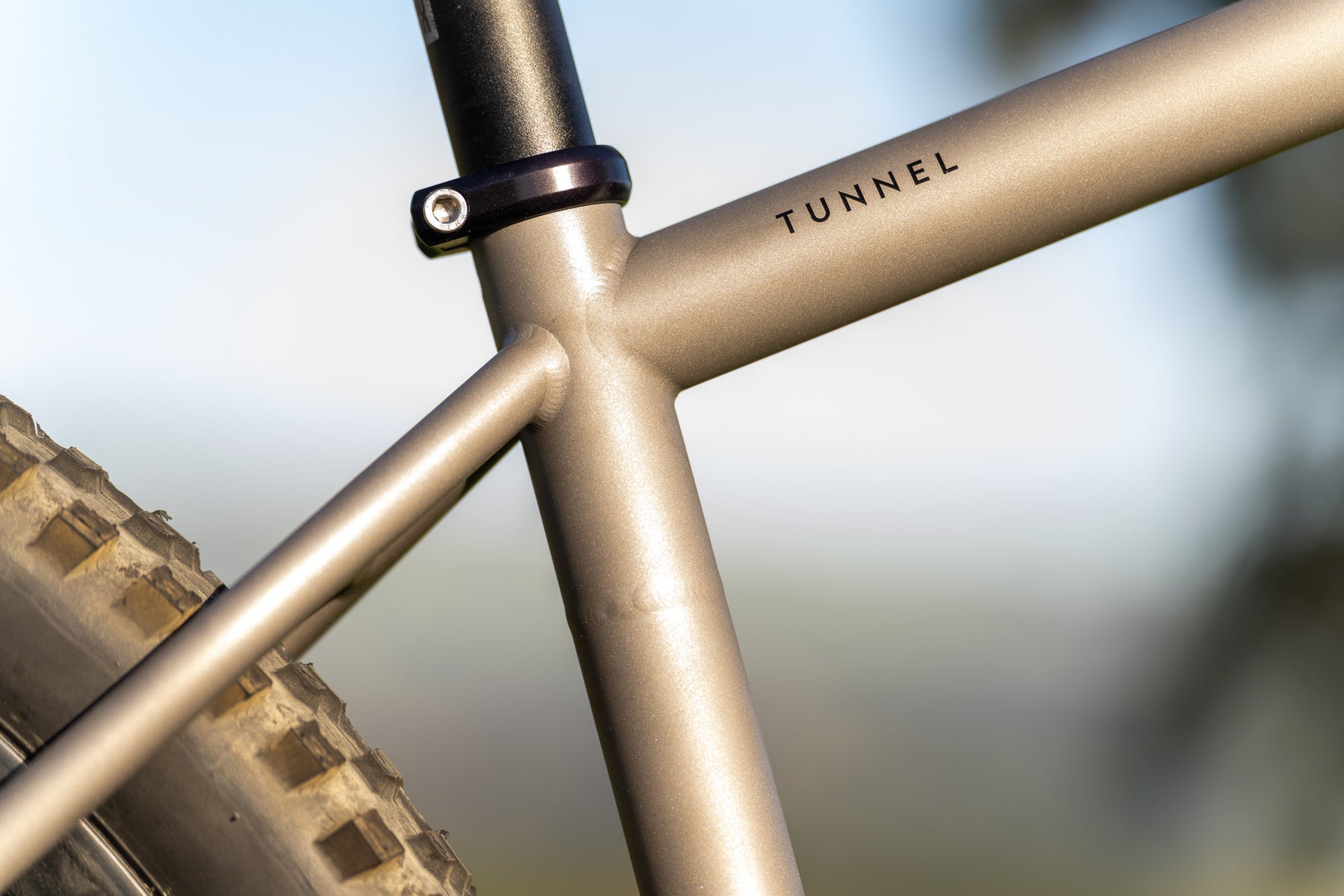

Seatpost Clamp Diameter // 34.9mm
Bottom Bracket // T47 73mm wide shell
Headtube Diameter // 44mm Internal Top and Bottom
Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40 (1.5 Tapered Steerer)
Mounts // 2 bottle cage mounts in front triangle - triple mount under down tube
FORK //

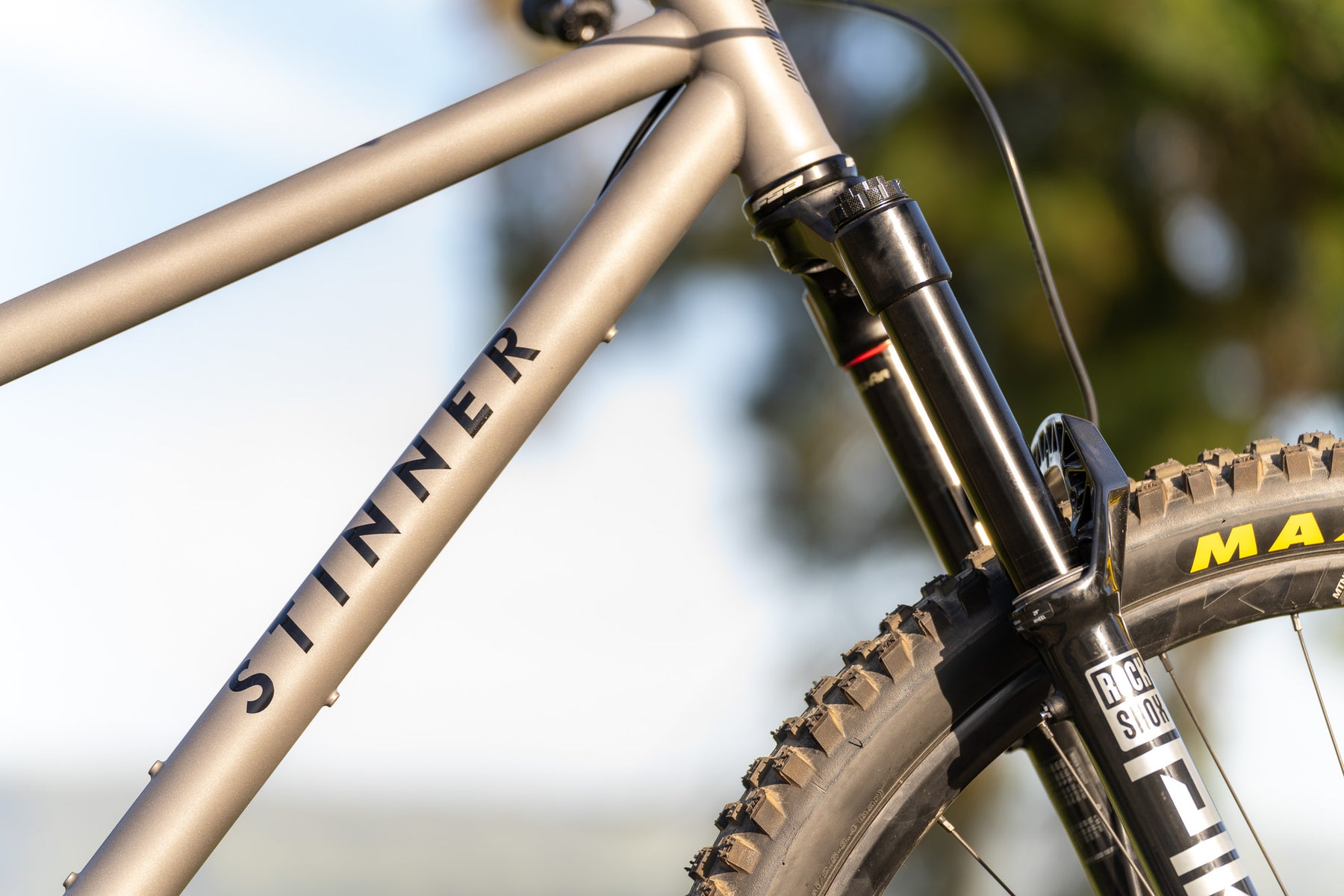

The Tunnel is designed around a 140mm travel suspension fork with a 551mm axle to crown measurement.
Build Kit Details //
FORK //
Suspension Fork // Rock Shox Pike Select 140mm, 29'er, BOOST 110x15, Charger RC, 44mm offset, Gloss Black
COCKPIT //

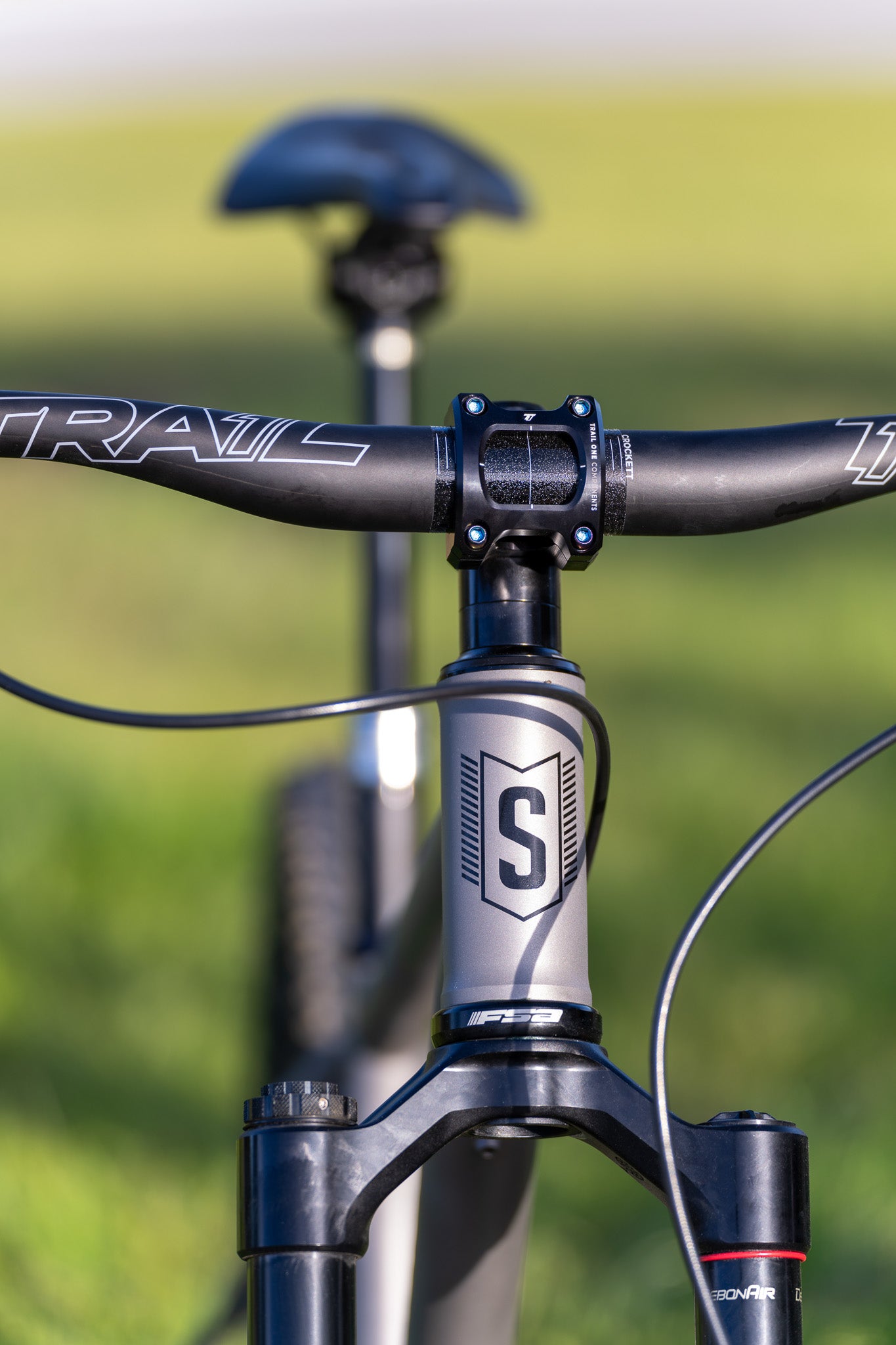

Stem // Race Face Turbine R 35mm - 40mm length
Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

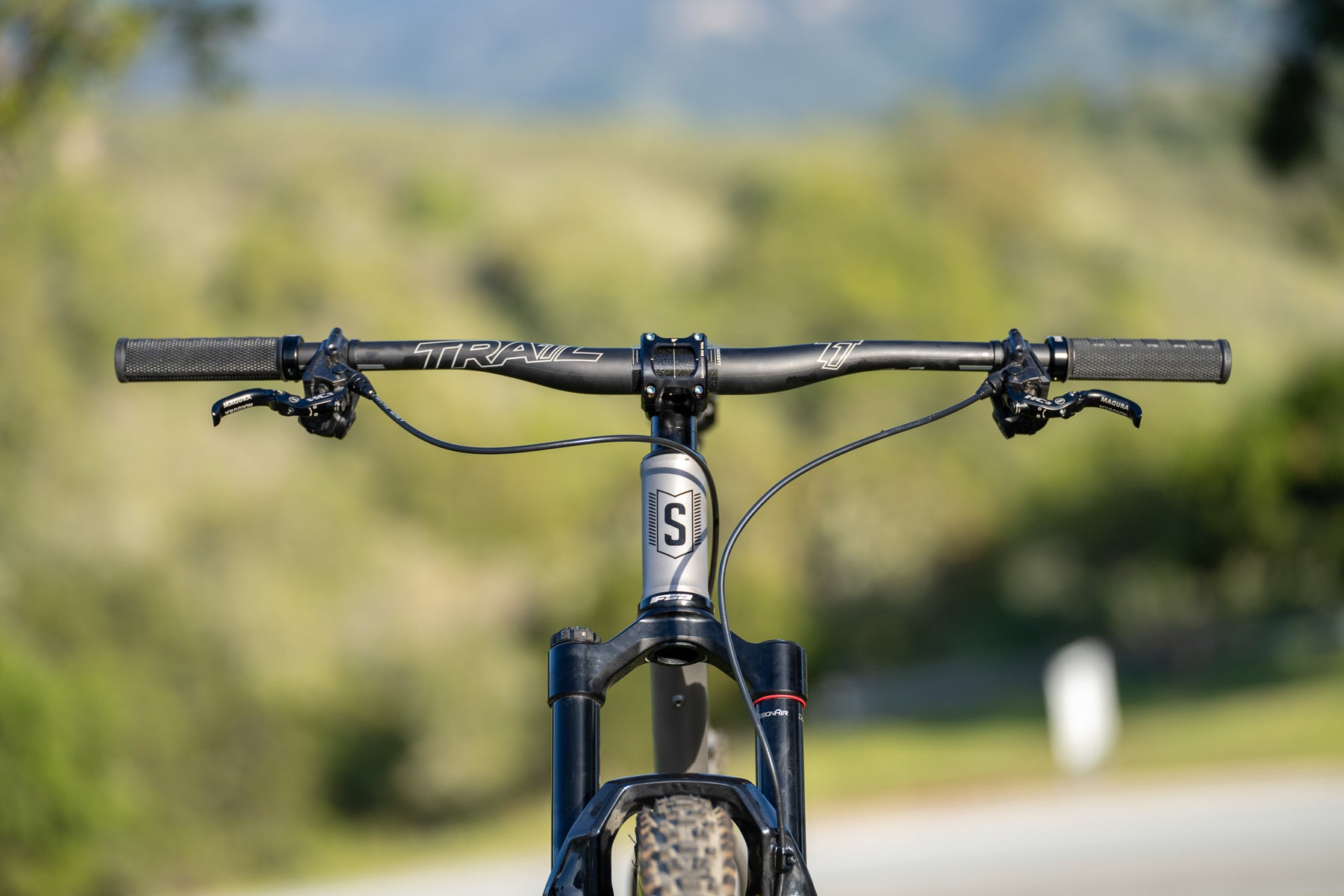

Handlebar // Race Face Turbine Riser Bar - 35mm clamp - 780mm width - 20mm rise
Grips // Race Face Getta Grip 33mm - Black/Black
Seatpost // Rock Shox Reverb AXS Dropper 31.6mm // Medium and M/L: 150mm drop // Large and XL: 175mm drop
Dropper Lever // SRAM Pod Rocker AXS Controller
Seat Collar // Stinner Select 34.9mm
Saddle // WTB Silverado 265 Medium 142mm, Ti rails
Pedals // Not Included
DRIVETRAIN //
Bottom Bracket // SRAM DUB T47
Crankset // SRAM GX Eagle T-Type Wide - Medium and M/L: 165mm length // Large and XL: 170mm length
Chainring // SRAM GX Eagle Direct Mount - 8 bolt - 32t
Chain // SRAM GX Eagle T-Type Flattop 12spd

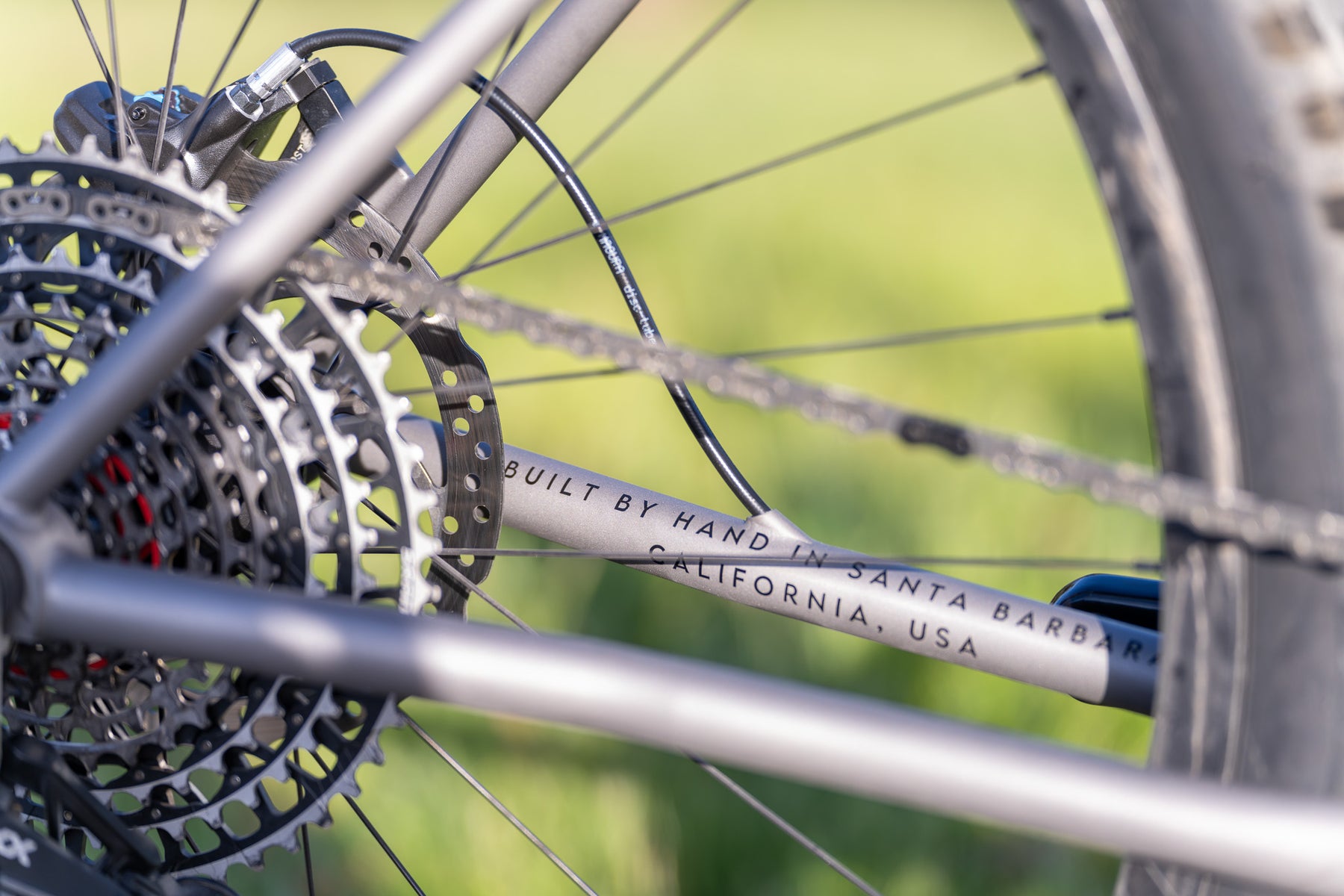

Cassette // SRAM XS-1275 Eagle Transmission - 10/52t
Rear Shifter // SRAM Pod AXS Controller
Rear Derailleur // SRAM GX Eagle AXS T-Type 12spd
Front Brake // SRAM DB8 Stealth
Rear Brake // SRAM DB8 Stealth
Front Rotor // SRAM Centerline 6B - 180mm
Rear Rotor // SRAM Centerline 6B - 180mm
Charger // SRAM AXS Charger
Battery // SRAM AXS Battery
Hanger // N/A - Transmission
WHEELSET //
Front Wheel // DT Swiss M1900 Spline 29 - Tubeless, Boost 110x15mm, 28h, 6 Bolt
Rear Wheel // DT Swiss M1900 Spline 29 - Tubeless, Boost 148x12mm, 28h, 6 Bolt, XD Driver
Front Tire // Maxxis Assegai 29x2.5" - 3CT/EXO/TR/WT
Rear Tire // Maxxis Assegai 29x2.5" - 3CT/EXO/TR/WT
Build Kit Details //
FORK //
Suspension Fork // Rock Shox Pike Ultimate 140mm, 29'er, BOOST 110x15, Charger 3.1 RC2, 44mm offset, Gloss Silver
COCKPIT //
Stem // Race Face Turbine R 35mm - 40mm length
Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40
Handlebar // Race Face Era Stealth Riser Bar - 35mm clamp - 780mm width - 20mm rise
Grips // Race Face Getta Grip 33mm - Black/Black
Seatpost // Rock Shox Reverb AXS Dropper 31.6mm // Medium and M/L: 150mm drop // Large and XL: 175mm drop
Dropper Lever // SRAM Pod Rocker AXS Controller
Seat Collar // Stinner Select 34.9mm
Saddle // WTB Silverado 265 Medium 142mm, Ti rails
Pedals // Not Included
DRIVETRAIN //
Bottom Bracket // SRAM DUB T47
Crankset // SRAM X0 Eagle T-Type Wide - Medium and M/L: 165mm length // Large and XL: 170mm length
Chainring // SRAM X0 Eagle Direct Mount - 8 bolt - 32t
Chain // SRAM X0 Eagle T-Type Flattop 12spd
Cassette // SRAM XS-1295 Eagle Transmission - 10/52t
Rear Shifter // SRAM Pod Ultimate AXS Controller
Rear Derailleur // SRAM X0 Eagle AXS T-Type 12spd
Front Brake // SRAM Motiv Bronze Stealth
Rear Brake // SRAM Motiv Bronze Stealth
Front Rotor // SRAM Centerline CL - 180mm
Rear Rotor // SRAM Centerline CL - 180mm
Charger // SRAM AXS Charger
Battery // SRAM AXS Battery
Hanger // N/A - Transmission
WHEELSET //
Front Wheel // Astral Serpentine X Carbon rims to Astral Stage 1 hubs - Tubeless, Boost 110x15mm, Centerlock, 28h
Rear Wheel // Astral Serpentine X Carbon rims to Astral Stage 1 hubs - Tubeless, Boost 148x12mm, Centerlock, 28h, XD Driver
Front Tire // Maxxis Assegai 29x2.5" - 3CT/EXO/TR/WT
Rear Tire // Maxxis Assegai 29x2.5" - 3CT/EXO/TR/WT
GEOMETRY CHART & FRAME DRAFTS //
| Geometry | M | M/L | L | XL |
| Stack | 644 | 655 | 666 | 677 |
| Reach | 447 | 460 | 480 | 500 |
| Top Tube Length, Horizontal | 628 | 644 | 668 | 692 |
| Head Tube Length | 96 | 108 | 120 | 132 |
| Head Tube Angle | 66° | 66° | 66° | 66° |
| BB Height* | 313 | 312 | 313 | 313 |
| BB Drop | 60 | 60 | 60 | 60 |
| Effective Seat Tube Angle | 76° | 75.8° | 75.7° | 75.5° |
| Front Center** | 758 | 775 | 800 | 825 |
| Chainstay Length | 430 | 430 | 430 | 430 |
| Wheelbase** | 1181 | 1199 | 1224 | 1249 |
| Standover Height 60mm forward of BB* | 771 | 788 | 804 | 820 |
| Seat Tube Length (center - top) | 420 | 440 | 460 | 480 |
|
*w/ 29 x 2.5" tires **w/ 44mm fork rake All Measurements are Static All Measurements in mm |
|
With a Complete //
All parts listed under the complete build kit specifications will be fully installed, tuned, and ready to ride*
*Some assembly will be required out of the box
Wheels // Will ship setup tubeless with sealant installed
Charger // SRAM AXS single battery charger
Documentation // Welcome to the Stinner Family
With a Frame //
Headset // Not Included - CLICK HERE for compatible headset options
Hanger // SRAM UDH
Rear Axle // Stinner Select UDH - 180mm x M12 x 1.0
Bottle Boss Bolts // QTY. 7 Stainless Bolts
Chainstay Protector // Clear Vinyl - Installed
Brake Sleeve // Foam brake sleeve for internal DT portion
Seat Post Clamp // Stinner Select 34.9mm
Documentation // Welcome to the Stinner Family
Time to get Rowdy
140mm Travel
The perfect amount of travel to make the Tunnel capable of hitting almost every line you can find.
Ultra Reliable
SRAM Eagle AXS
The Tunnel Podium complete build kits feature the robust, full-mount, Eagle AXS rear derailleurs for worry free shifting on the trail.
Grip Matters
29 x 2.5" Tires
Plenty of tire clearance means the Tunnel is ready to tackle just about anything you can throw at it. The complete builds come stock with Maxxis tires.
Mile after Mile
No Fuss
We used modern industry standards on the Podium Series to ensure you won't have any surprises when it comes time for maintenance. Nothing proprietary to hold you back.
MAde in the USA
Titanium Frame
The Tunnel Podium frame features aerospace grade Titanium. The Podium Series is about elevating your cycling experience, so Titanium was the natural choice.
Focus on the ride
Lifetime Warranty
Every Stinner frame is backed by a lifetime warranty against manufacture defects.
