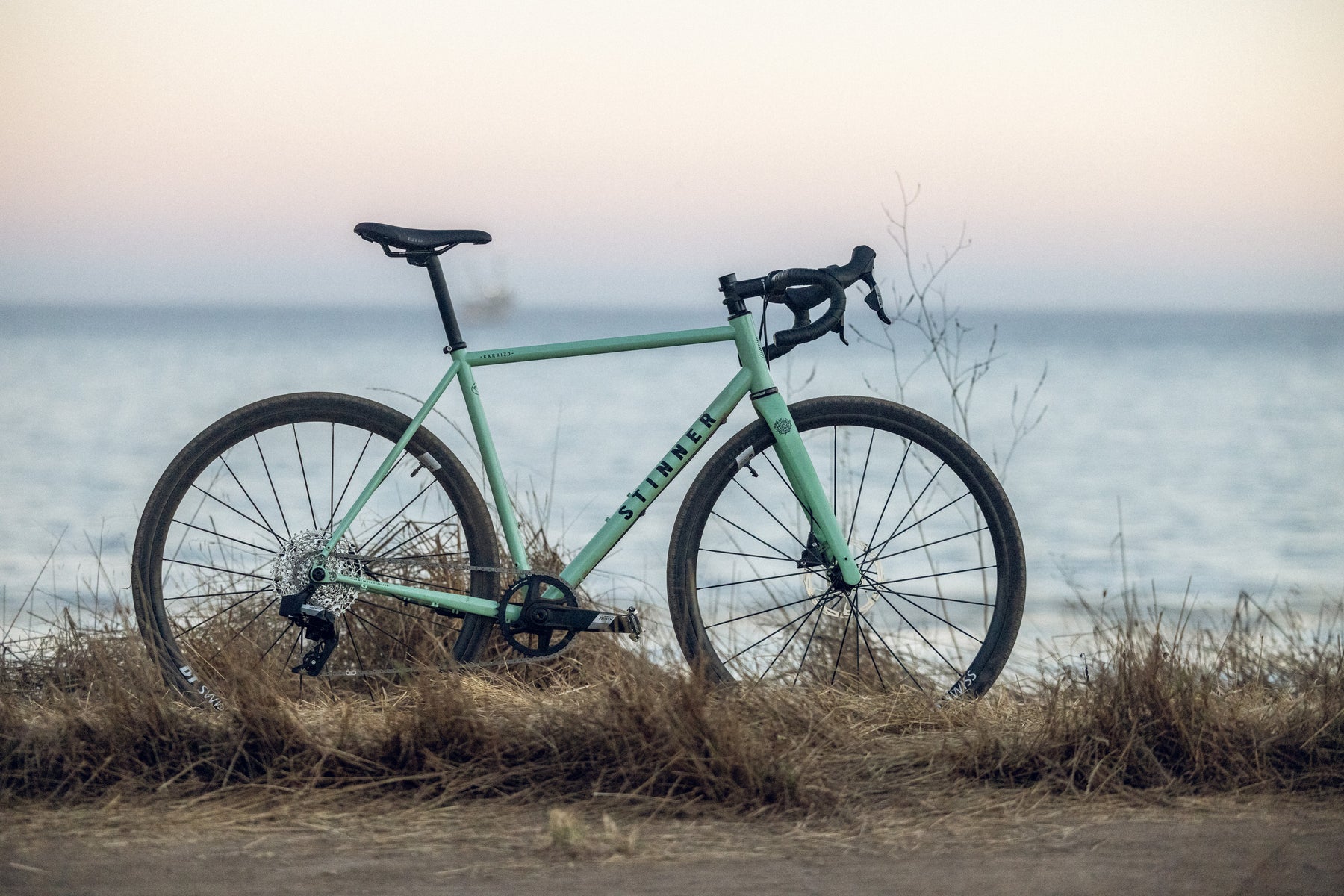

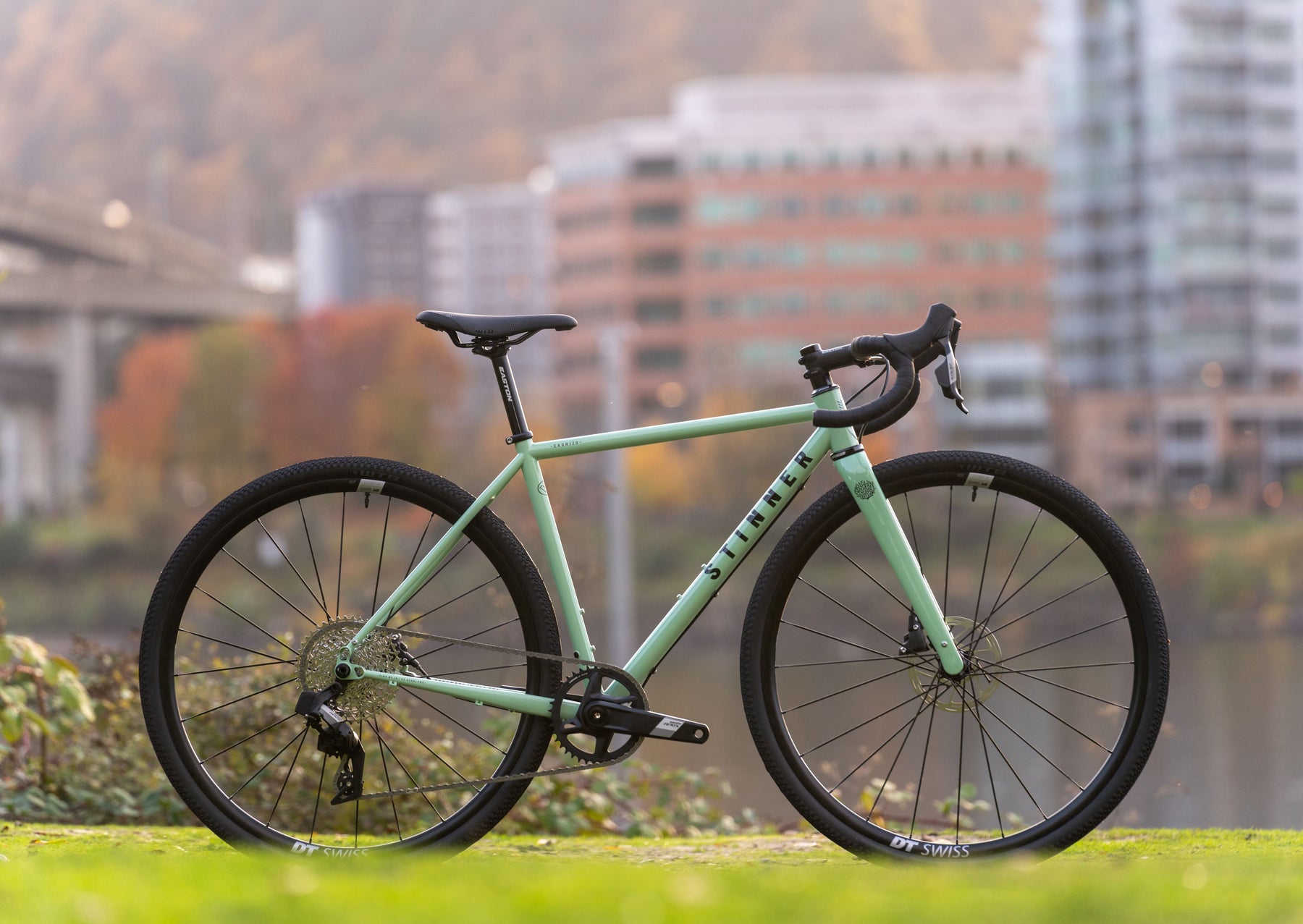

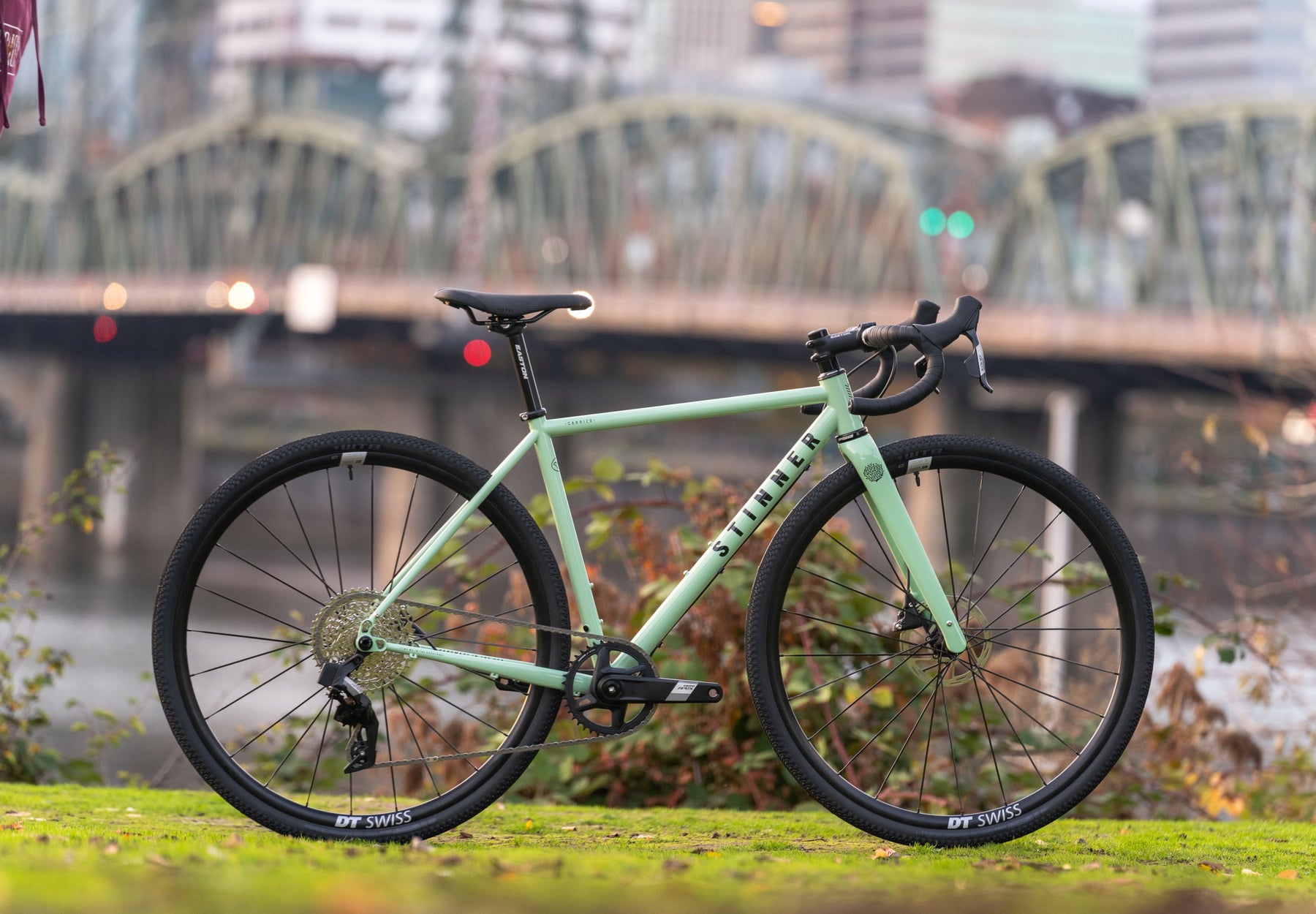

Carrizo Select

Frameset Technical Specifications //

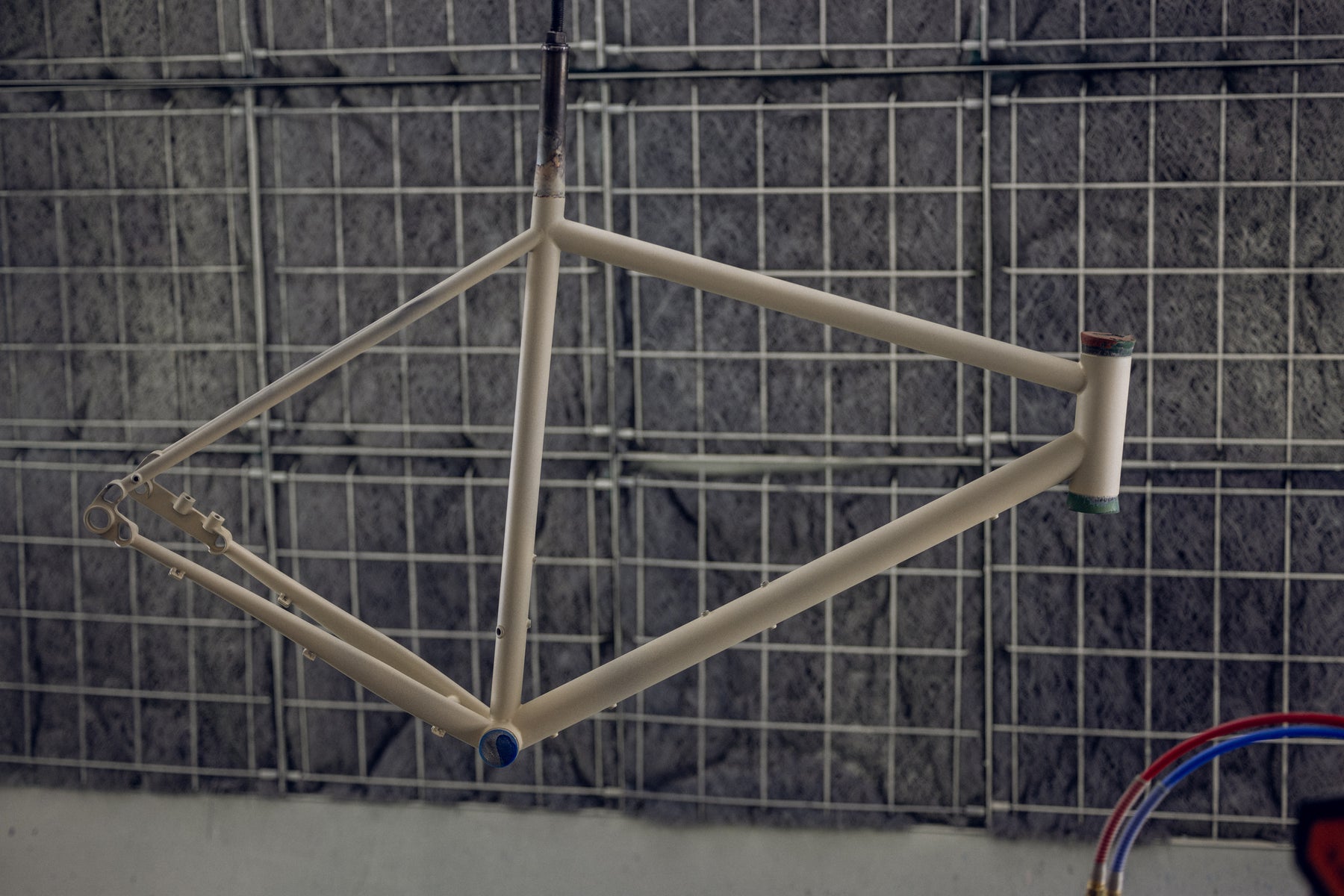

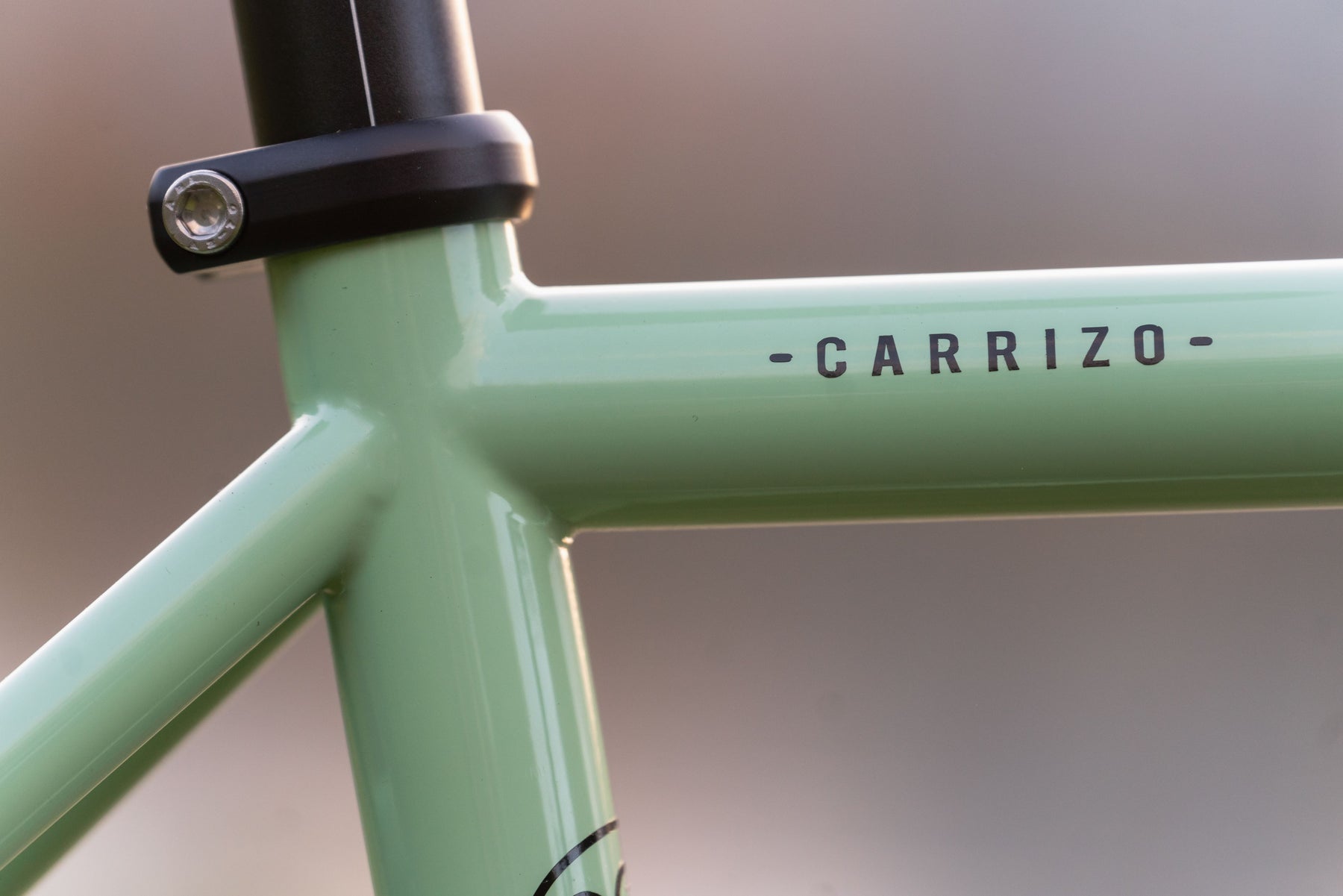

FRAME //

Material // Complete Columbus Zona Steel Tube Set

Finish // Durable Powder Coat

Dropouts // Stinner UDH 160mm Flat Mount Steel Dropouts

Drivetrain Compatibility // Mechanical 2x or 1x (full length housing) / SRAM AXS - Transmission/Full Mount compatible / Shimano 12spd Di2

MAX Tire Clearance // 700 x 40mm

MAX Tire Clearance w/ Fenders // 700 x 35mm

MAX Chainring Clearance // 2x: 50/34t (44.5mm chainline) 1x: 44t (47.5mm chainline)

Dropout Spacing // 142 x 12mm

Rear Axle // 166mm - M12 x 1.0 - 15mm threaded portion

Brake Mount // Flat Mount 160mm

MAX Rotor Size // 160mm

Brake Routing // External w/bolt-on and zip-tie guides

Seatpost Diameter // 27.2mm

Seatpost Clamp Diameter // 30mm

Front Derailleur Clamp Diameter // 28.6mm

Bottom Bracket // BSA 68mm wide shell (12spd Di2 must use a 24mm spindle crankset)

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40

Mounts // Fender Mounts and 3 bottle cage locations

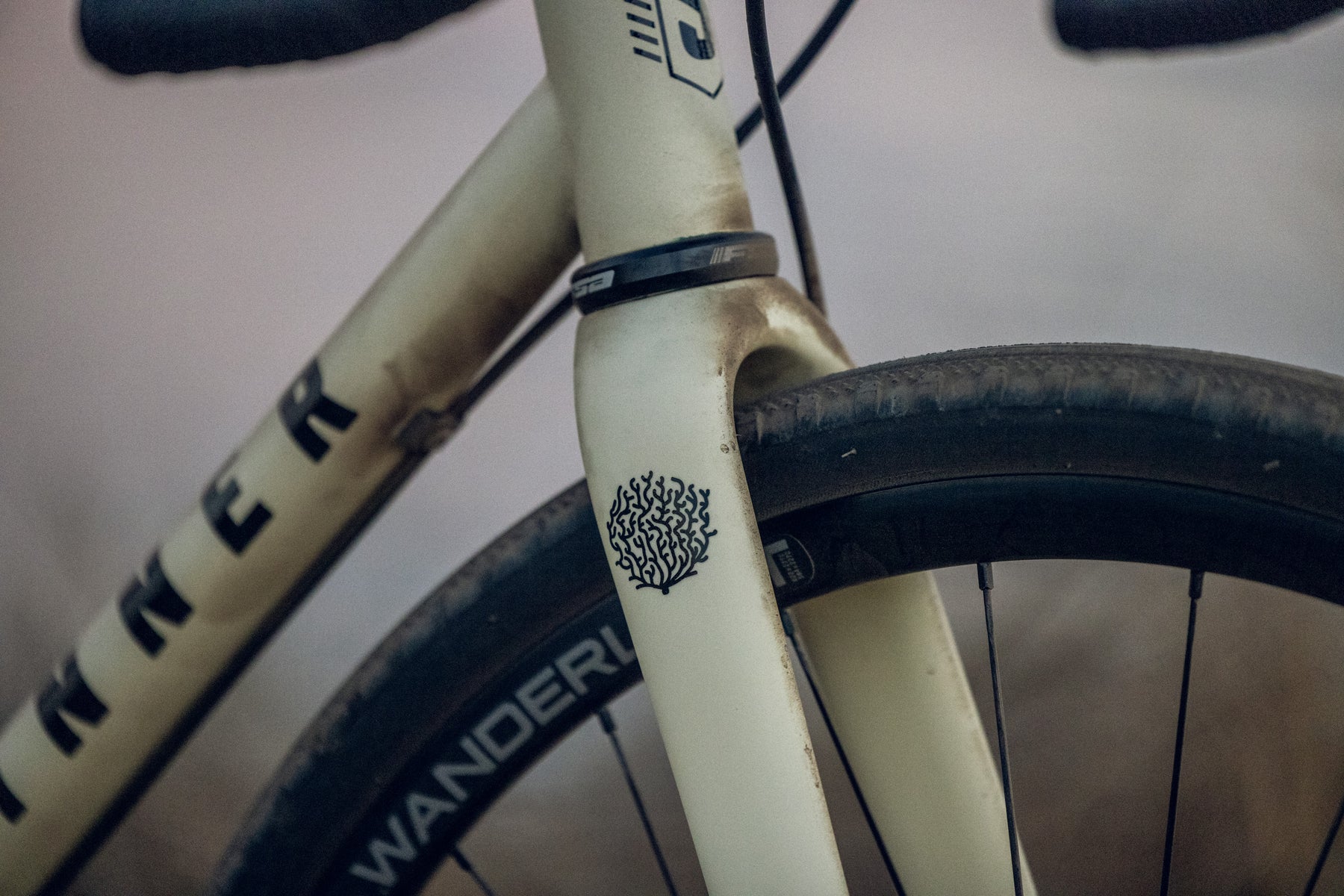

FORK //

Material // Full Carbon

MAX Tire Clearance // 700 x 40mm

MAX Tire Clearance w/ Fenders // 700 x 35mm

Dropout Spacing // 100 x 12mm

Front Axle // 120mm - M12 x 1.5

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // External - Internal through non-drive leg

Steerer // 1.5" Tapered

Steerer Length // 350mm

Crown Race // 40mm

Axle to Crown // 382mm

Rake // 47mm

Mounts // Fender Mounts

Build Kit Details //

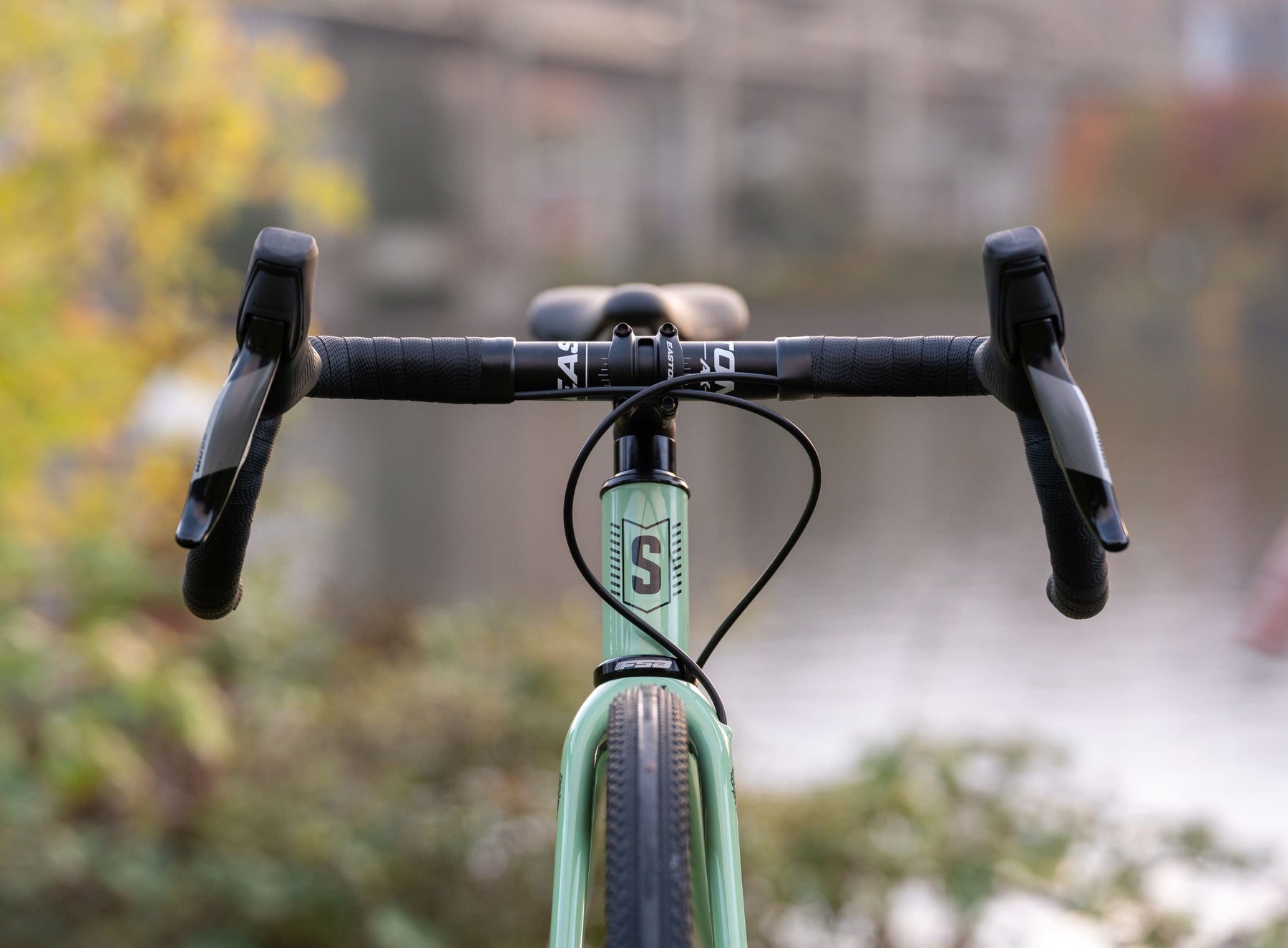

COCKPIT //

Stem // Easton EA50 Alloy - 50cm/52cm: 80mm length // 54cm/56cm: 90mm length // 58cm/60cm: 100mm length

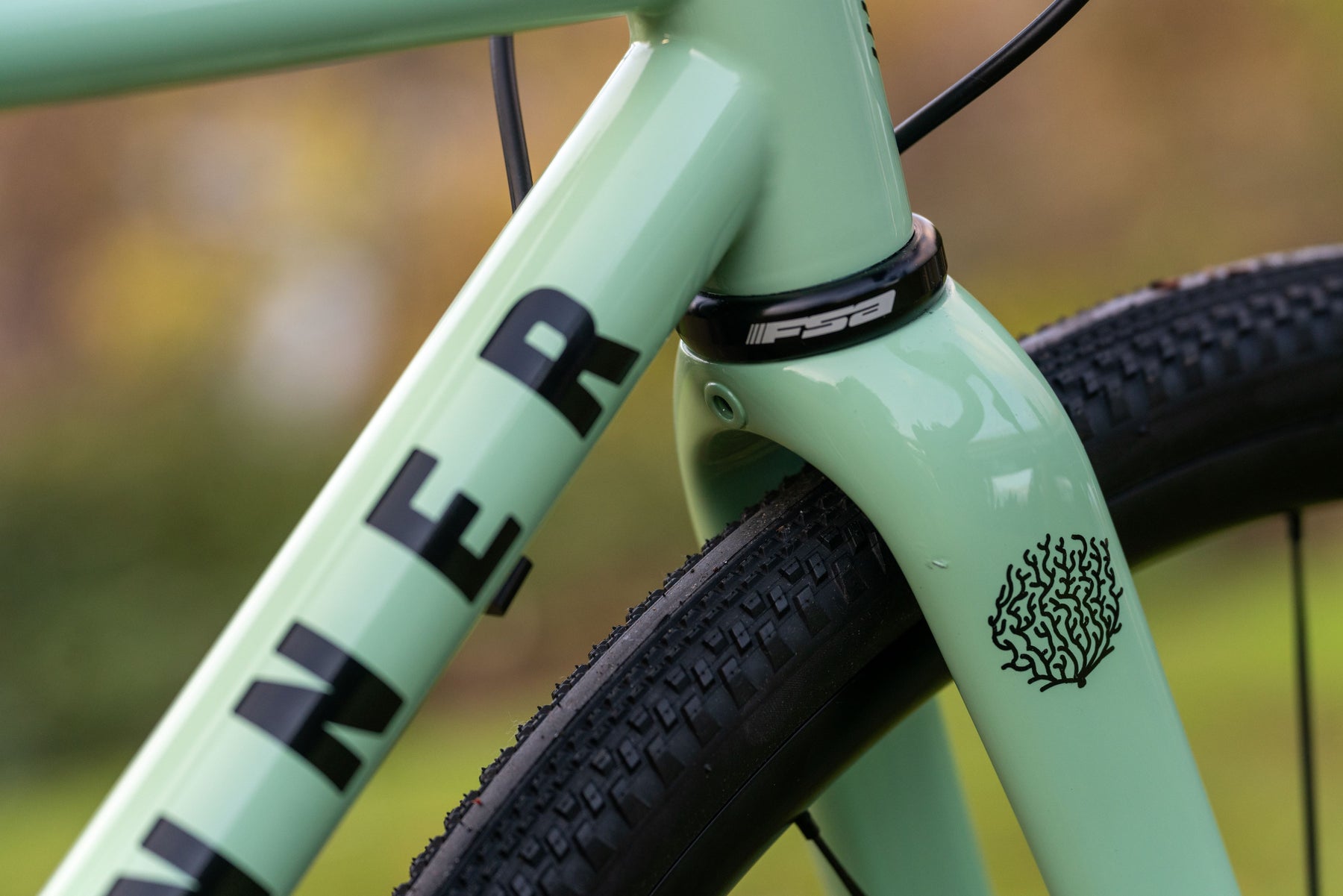

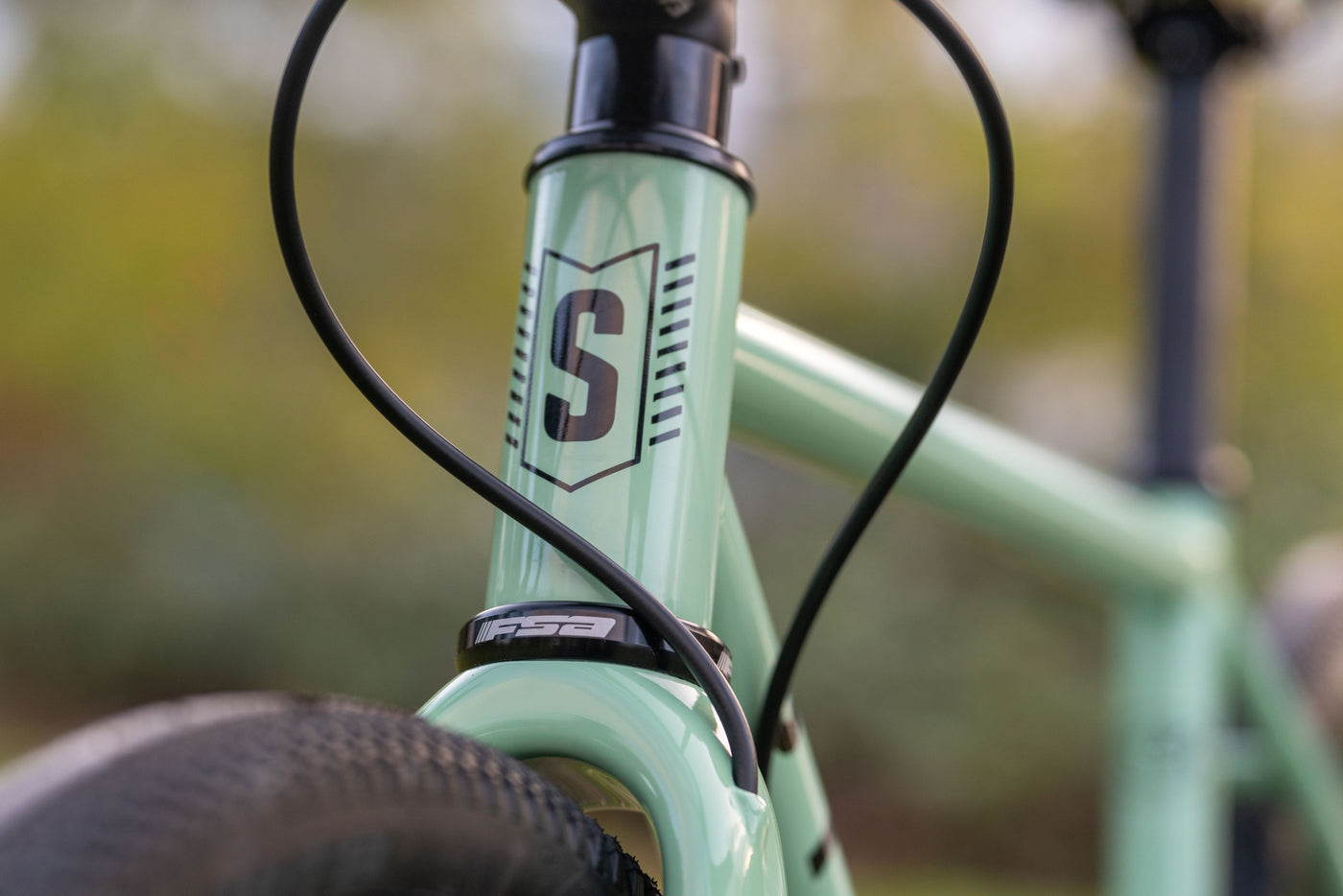

Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

Handlebar // Easton EA50 AX Alloy - Reach: 80mm, Drop: 120mm, Flare: 16° - 50cm/52cm: 40cm width // 54cm/56cm: 42cm width // 58cm/60cm: 44cm width

Bar Tape // Stinner Select - Black

Seatpost // Easton EA50 Alloy - 27.2mm x 350mm length, 10mm offset

Seat Collar // Stinner Select 30mm

Saddle // WTB Silverado 265 Medium 142mm, Steel rails

Pedals // Not Included

DRIVETRAIN //

Bottom Bracket // SRAM DUB BSA 68mm

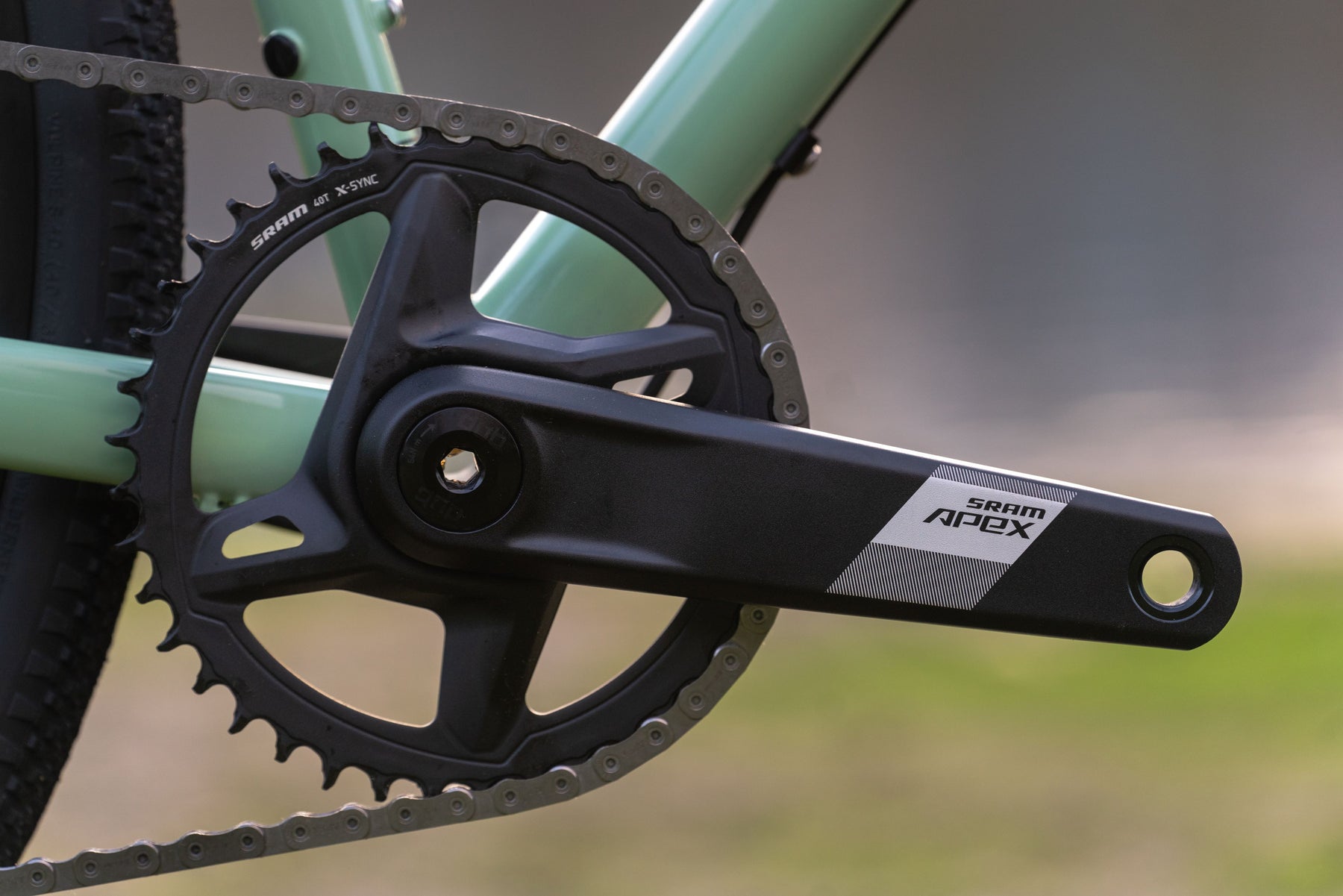

Crankset // SRAM Apex WIDE 1x - 50cm/52cm: 170mm length // 54cm/56cm: 172.5mm length // 58cm/60cm: 175mm length

Chainrings // SRAM Apex 1x 40t

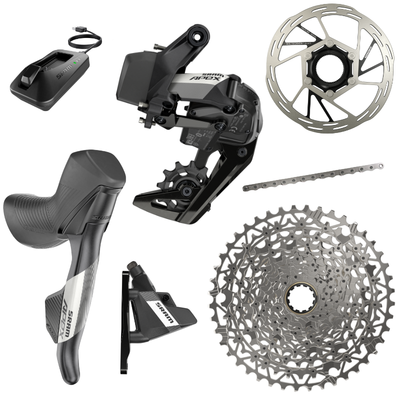

Chain // SRAM Apex Flat Top 12spd

Cassette // SRAM Apex XPLR 11/44t

Front Shifter // SRAM Apex AXS

Rear Shifter // SRAM Apex AXS

Front Derailleur // N/A

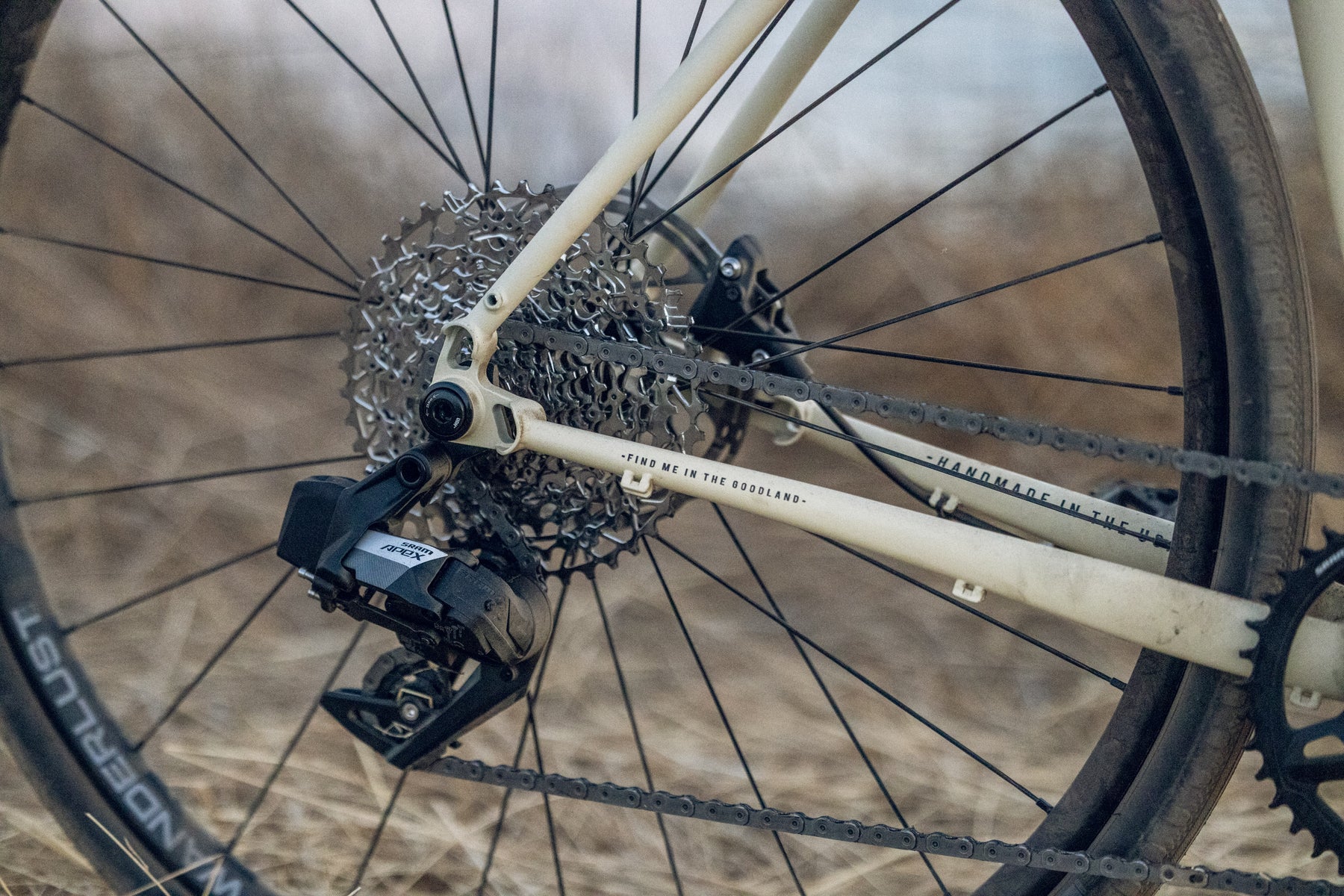

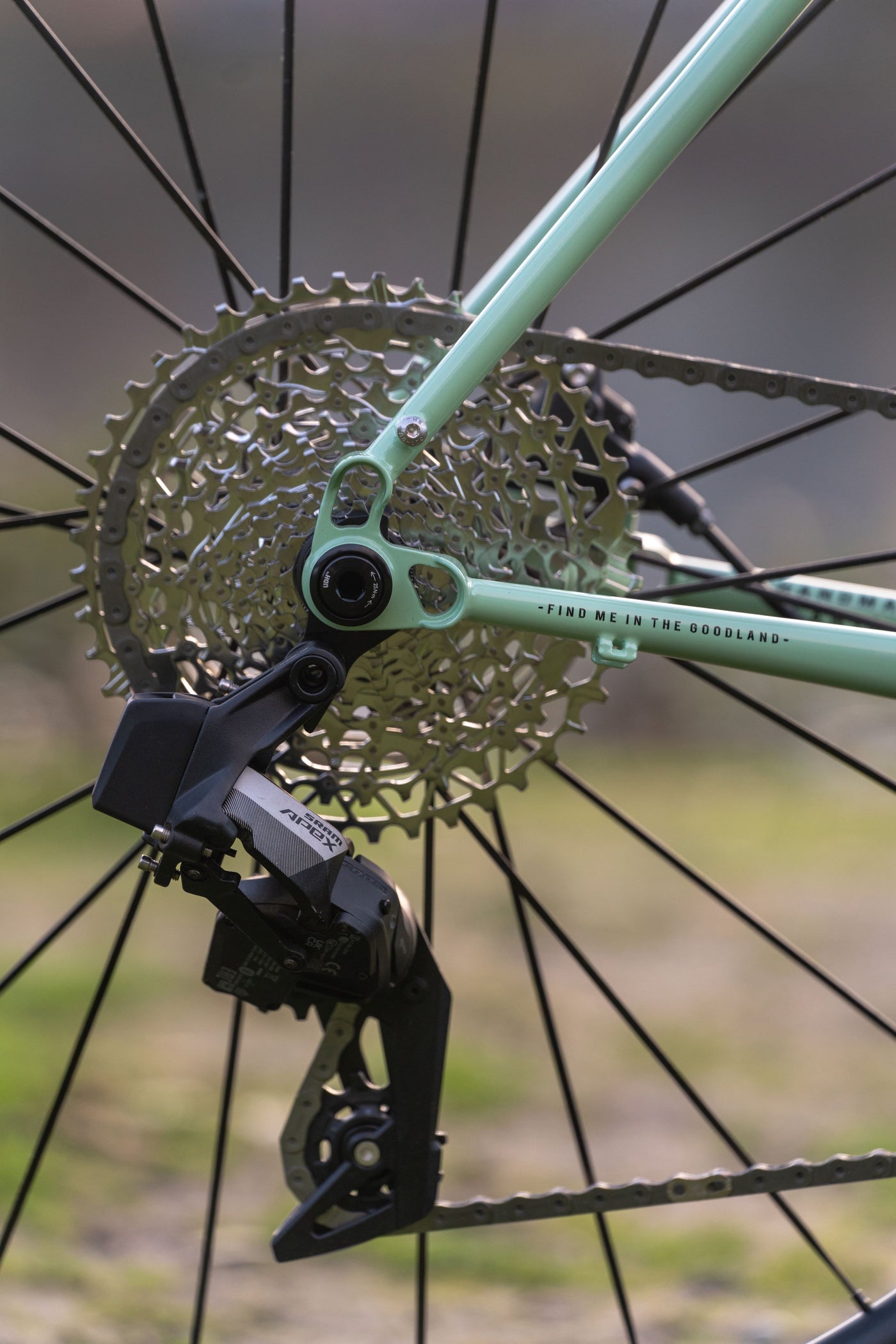

Rear Derailleur // SRAM Apex AXS XPLR

Front Brake // SRAM Apex

Rear Brake // SRAM Apex

Front Rotor // SRAM Paceline Centerlock 160mm

Rear Rotor // SRAM Paceline Centerlock 160mm

Charger // SRAM AXS Charger

Battery // SRAM AXS Battery

Hanger // SRAM UDH

WHEELSET //

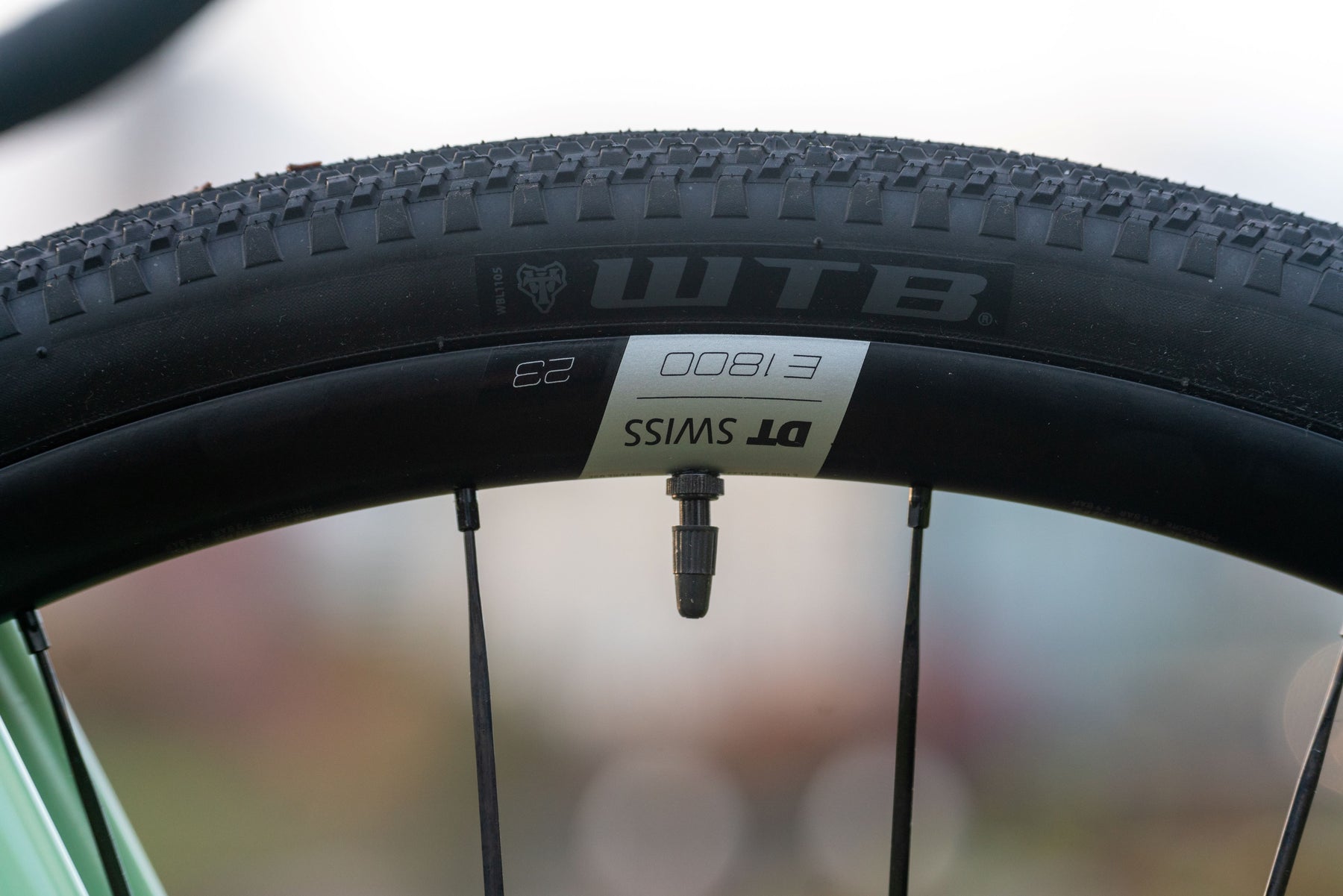

Front Wheel // DT Swiss E1800 Spline 23, Tubeless, 100x12mm, 24h, Center Lock

Rear Wheel // DT Swiss E1800 Spline 23, Tubeless, 142x12mm, 24h, Center Lock, HG Driver

Front Tire // WTB Vulpine S, TCS, SG2, 700x40c

Rear Tire // WTB Vulpine S, TCS, SG2, 700x40c

GEOMETRY CHART & FRAME DRAFTS //

With a Complete //

All parts listed under the complete build kit specifications will be fully installed, tuned, and ready to ride*

*Some assembly will be required out of the box

Wheels // Will ship setup tubeless with sealant installed

Charger // SRAM AXS single battery charger

Documentation // Welcome to the Stinner Family

With a Frameset //

Fork // Carrizo Carbon Fork

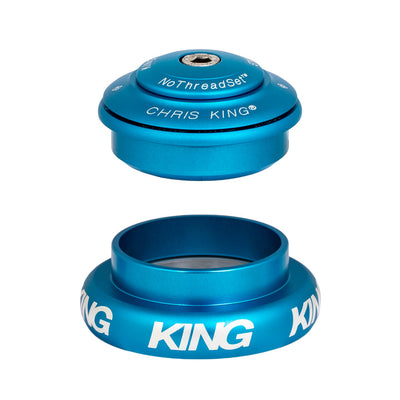

Headset // Not Included - CLICK HERE for compatible headset options.

Hanger // SRAM UDH

Rear Axle // Stinner Select UDH - 166mm x M12 x 1.0

Front Axle // Stinner Select - 120mm x M12 x 1.5 w/ Brass Washer

Bottle Boss Bolts // QTY. 12 Stainless Bolts

Chainstay Protector // Clear Vinyl - Installed

Flat Mount Bolts // Rear - 22mm long w/washers

Expander Plug // Stinner Select Expander Plug for Carbon Steerer

Bolt-On Guides // QTY. 4 Stinner Select Cable guides - Triple

Zip Ties // QTY. 5 Small Zip Ties - Black

Frame Plug // Di2 Rubber Plug

Seat Post Clamp // Stinner Select 30mm

Documentation // Welcome to the Stinner Family

What other drivetrains work well on the Carrizo Select?

- Any SRAM AXS (Wireless) drivetrain works great. If using a 1x drivetrain be sure to spec a WIDE version of the crankset you intend to use. If you opt for a 2x drivetrain your largest chainring combination should not exceed 46/33t (See Frameset Technical Specifications).

- Any Shimano Di2 12spd Drivetrain will fit up nicely. The frame features a port for the front derailleur E-Tube wire and the driveside dropout breather hole is large enough for the rear E-Tube wire to pass through. If you opt for a 2x set-up your largest chainring combination should not exceed 50/34t (See Frameset Technical Specifications).

Mechanical Drivetrains that we know work well:

• Any Mechanical 1x drivetrain will work. Be aware that the minimum chainline can be no less than 47.5mm.
• Mechanical 2x drivetrains need to have a front derailleur that has a built-in cable stop. Newer Shimano front derailleurs (FD-R7000/R8000/R9100 or newer) will work. Microshift Sword front derailleurs are also compatible.

I am thinking of running mechanical disc brakes, do they all work?

- The Carrizo Select is optimized for flat mount hydraulic brakes (See Frameset Technical Specifications). While there are many cable actuated flat mount disc brakes that will work well (TRP Spyre, Growtac Equal), there are some that do not work well due to how the cables need to route (Paul Klampers).

Can you tell me more about the differences of the two colorways?

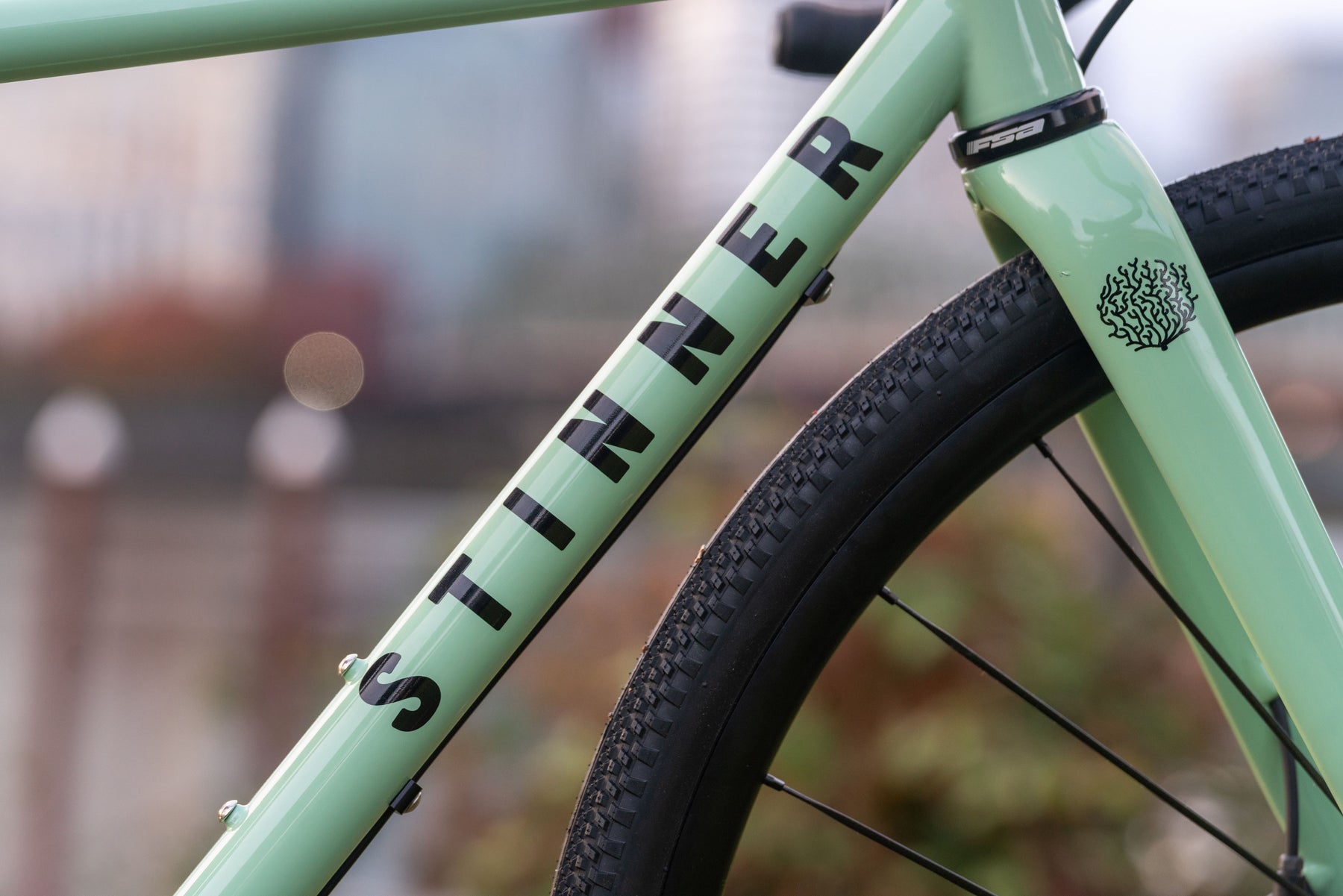

- Both colors are a powder coat. We chose to powder coat these frames due to its durability. The forks are full carbon and are painted to match the powder coat color on the frame.

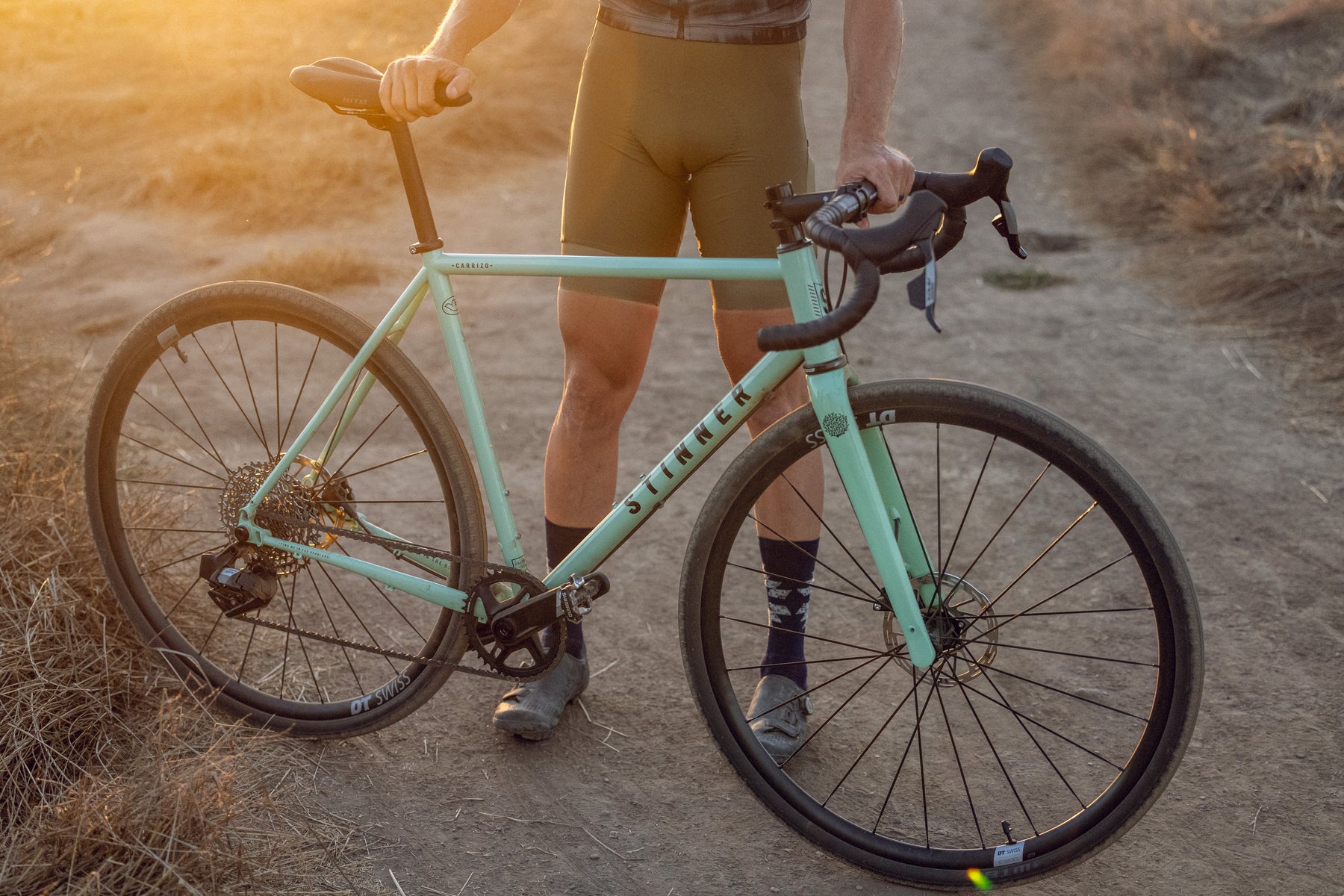

MINT - The Mint color way has a semi-gloss finish to it. Smooth to the touch and it shines in the sun.

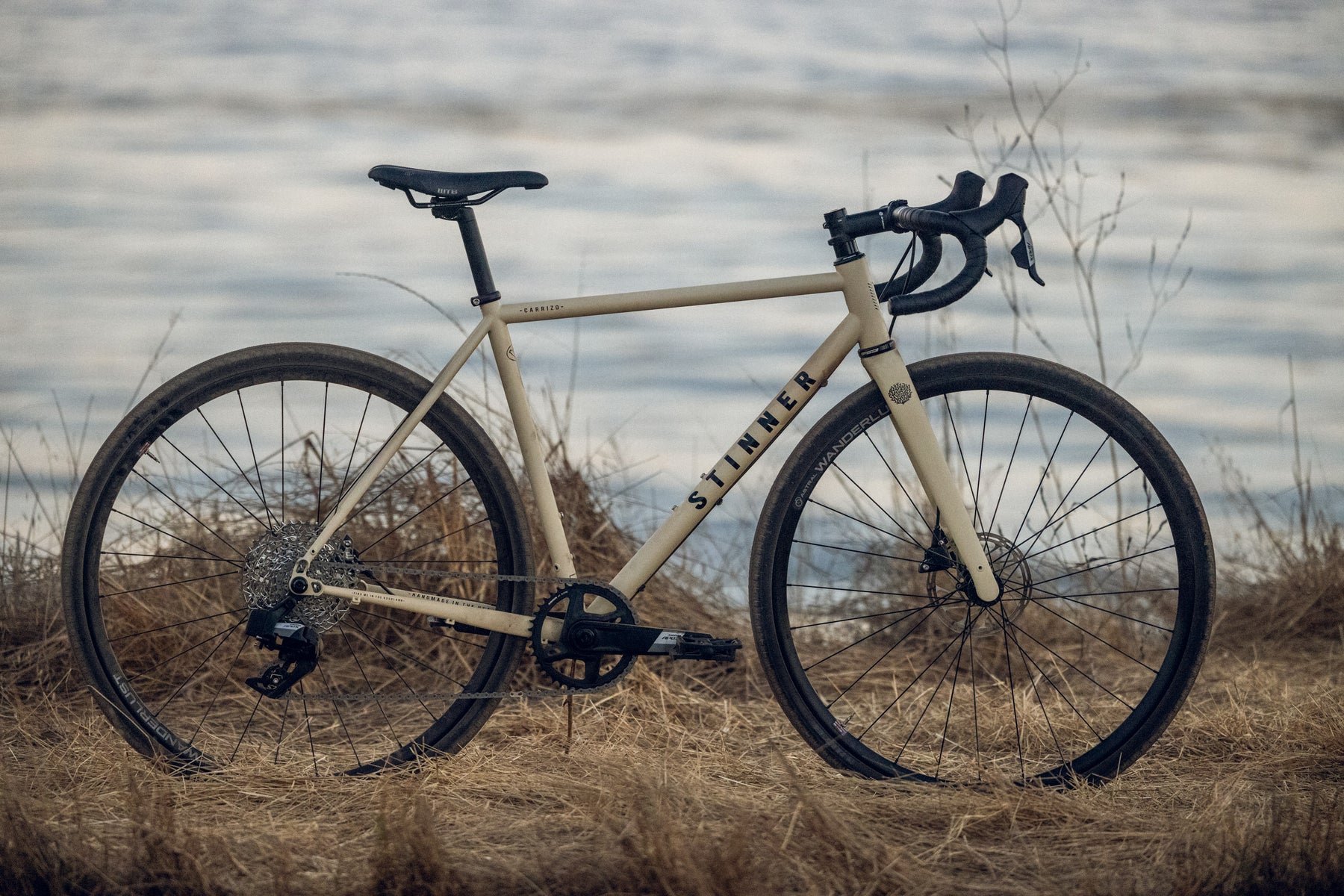

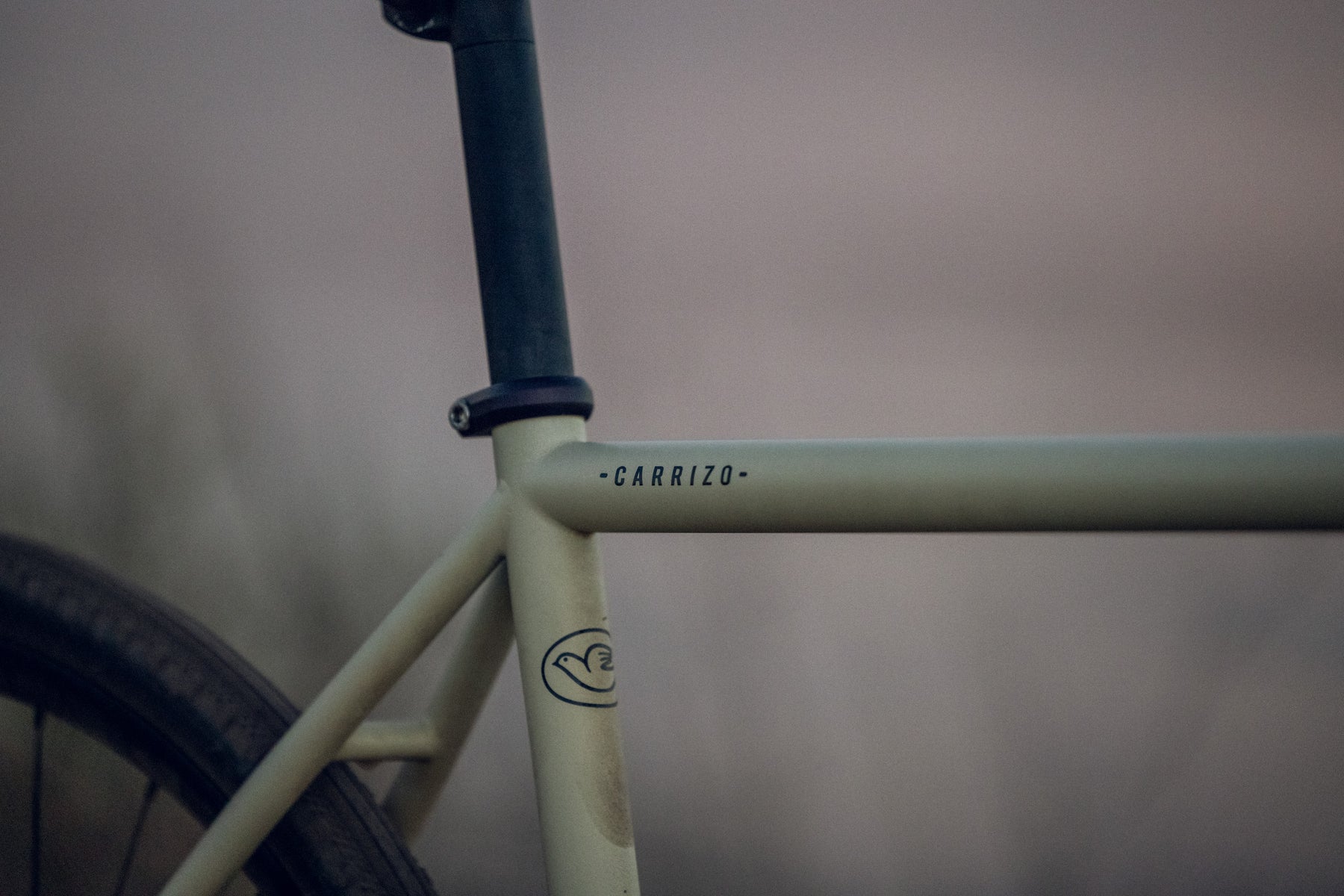

DESERT - Desert comes with a Satin finish and is slightly textured. Rough and rugged looking, just like the actual Carrizo Plain National Monument.

Can you help me understand chainline for the Carrizo Select?

The Carrizo Select can be run with a 1x crankset or a 2x set-up.

The minimum chainline to ensure proper fitment of a 1x chainring is 47.5mm. That means that the center of the chainring teeth sit 47.5mm outboard from the centerline of the frame. The max chainring that will fit with a 47.5mm chainline is a 44t. Other set-ups might work, but we cannot ensure fitment if your set-up is anything other than the stated 47.5mm 1x chainline.

To check your 1x chainline you can measure the distance from your chainring teeth to the closest point on the seat tube. Take that measurement and add 14.5mm (29mm thickness of the Carrizo seat tube divided in half).

The minimum chainline to ensure proper fitment of a 2x set-up is 44.5mm. The chainline on a 2x chainring set-up is measured from the center of the distance between the two chainrings. The max chainring combination that will fit with a 44.5mm chainline is a 50/34t. Other set-ups might work, but we cannot ensure fitment if your set-up is anything other than the stated 44.5mm 2x chainline or if you run larger than 50/34t chainrings.

To check your 2x chainline you can measure the distance from your outer chainring teeth to the closest point on the seat tube. Repeat that for the inner chainring. Subtract the inner ring distance from the outer ring distance and divide that number by half. Add that value to the inner ring distance then add 14.5mm (29mm thickness of the Carrizo seat tube divided in half).

MORE INFO COMING...

If you have a question that you cannot find the answer to please use the below "Ask a Question" form.
