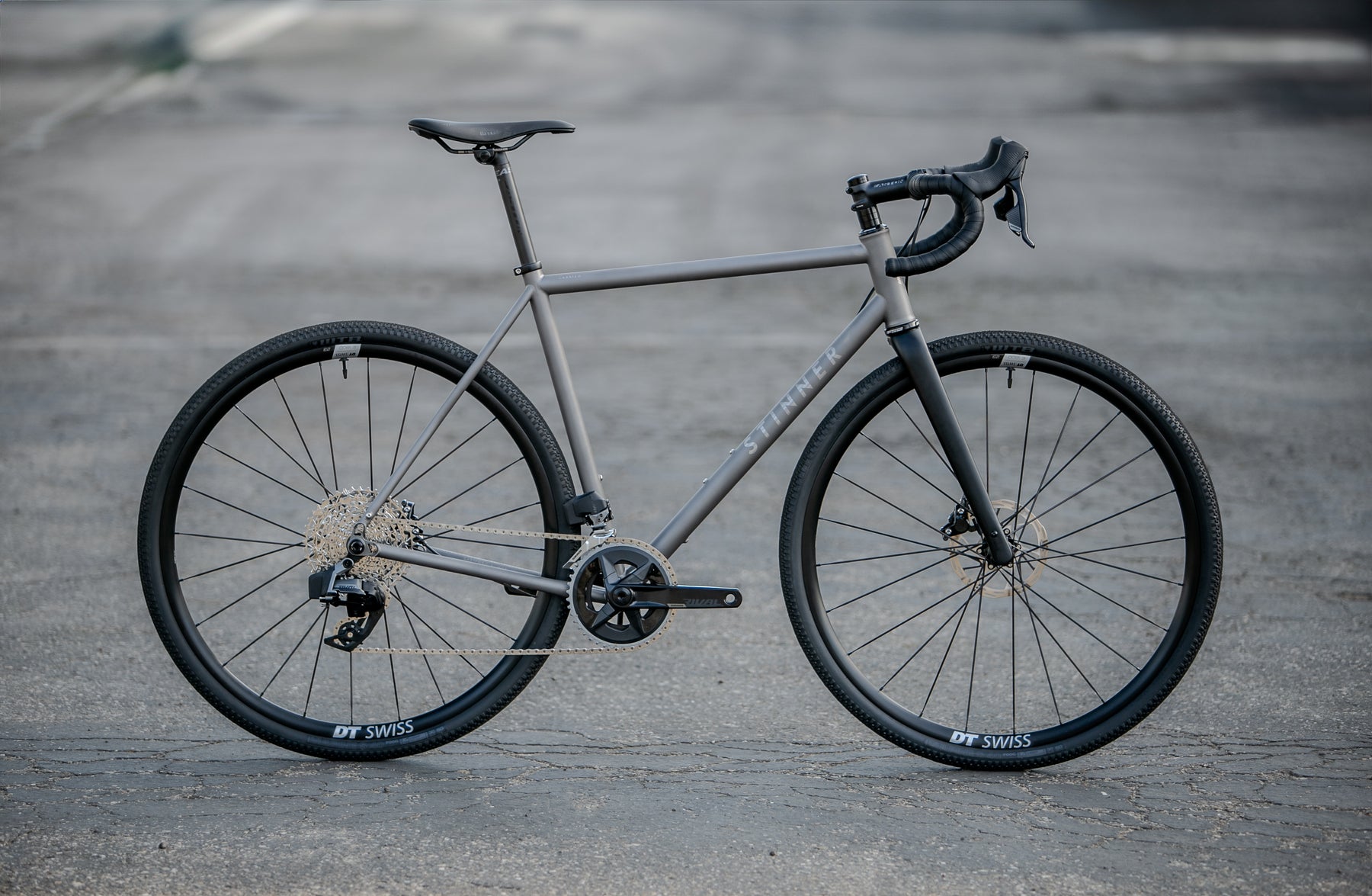

Carrizo Podium

Frameset Technical Specifications //

FRAME //

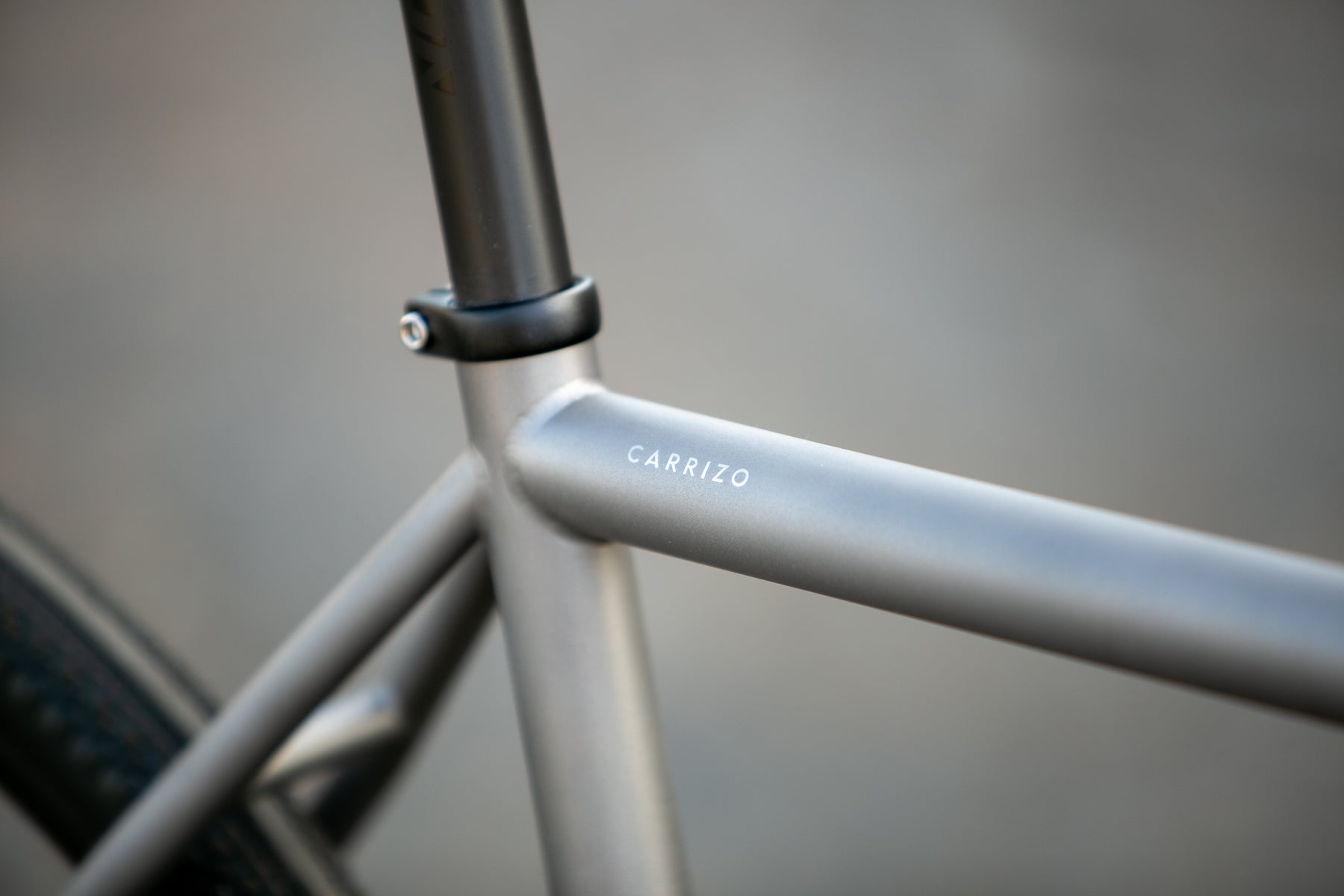

Material // Titanium - Straight Gauge Tubeset

Finish // Bead Blasted Raw Ti

Dropouts // Stinner UDH 160mm Flat Mount CNC Ti Dropouts

Drivetrain Compatibility // SRAM AXS 2x or 1x - Transmission/Full Mount compatible // Shimano Di2 12spd 2x

MAX Tire Clearance // 700 x 40mm

MAX Tire Clearance w/ Fenders // 700 x 35mm

MAX Chainring Clearance // 2x: 50/34t (44.5mm chainline) 1x: 44t (47.5mm chainline)

Dropout Spacing // 142 x 12mm

Rear Axle // 166mm - M12 x 1.0 - 15mm threaded portion

Brake Mount // Flat Mount 160mm

MAX Rotor Size // 160mm

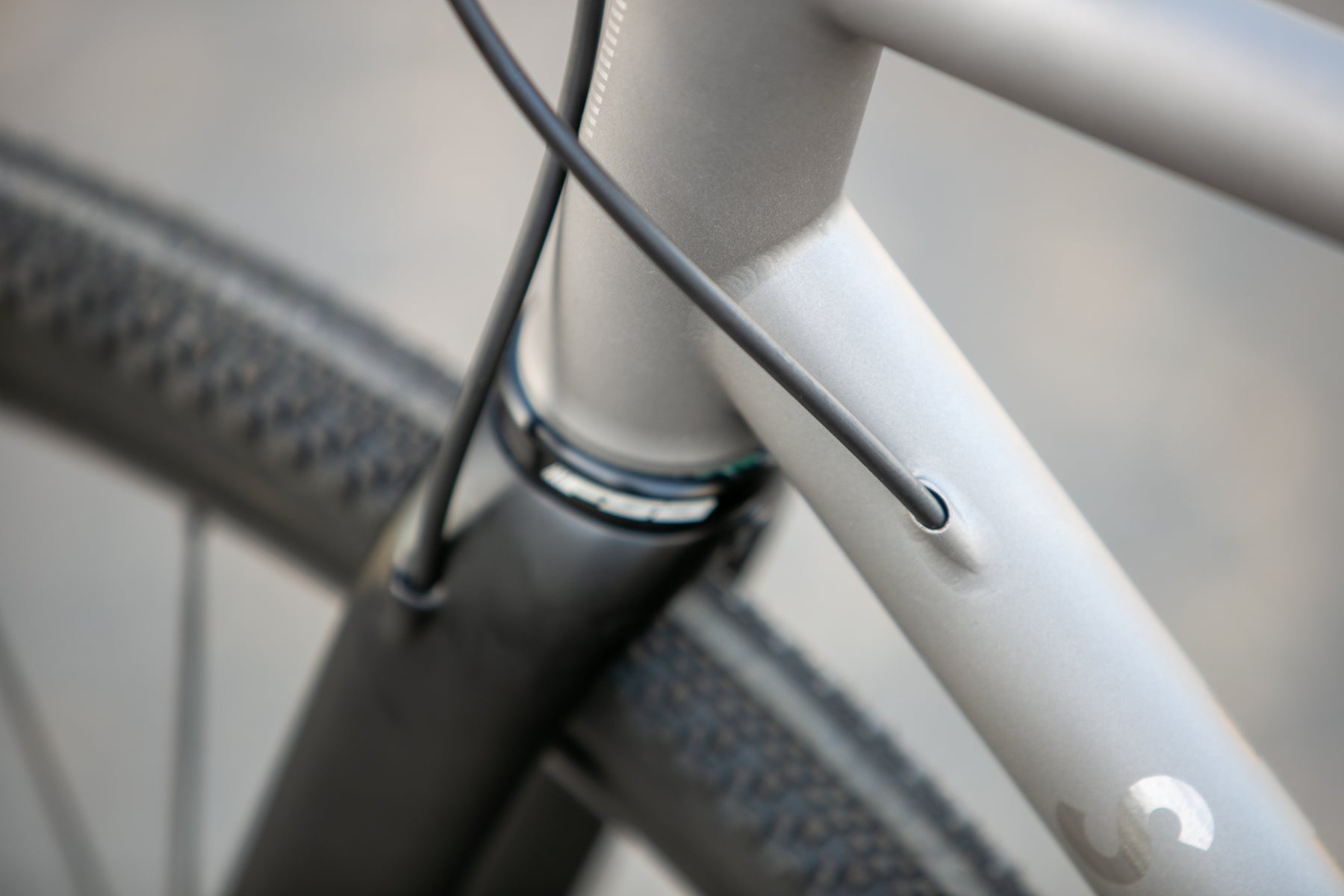

Brake Routing // Internal through frame - Hose enters the downtube just behind the headtube

Seatpost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm

Front Derailleur Clamp Diameter // 31.8mm

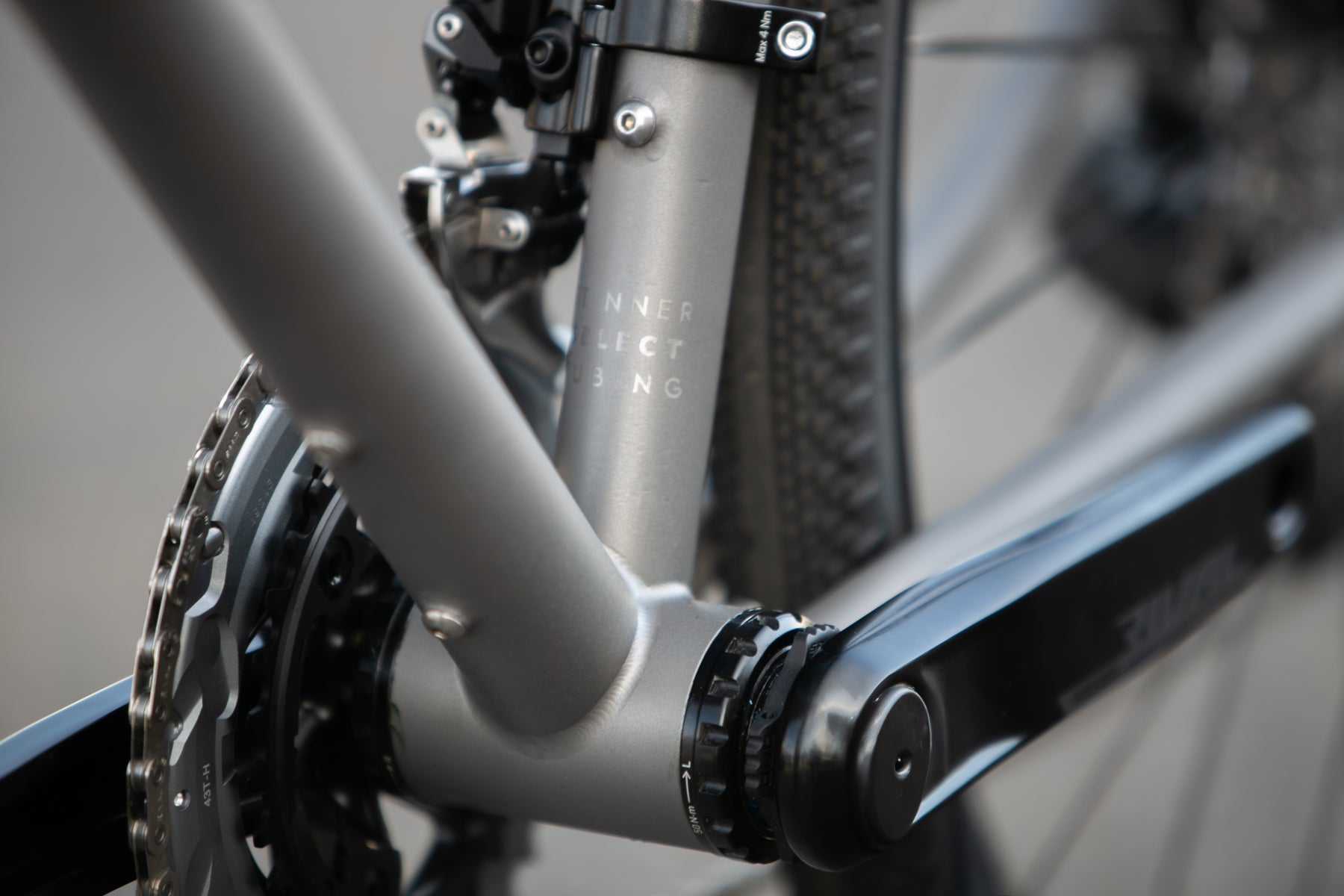

Bottom Bracket // T47 68mm wide shell

Headtube Diameter // 44mm Internal Top and Bottom

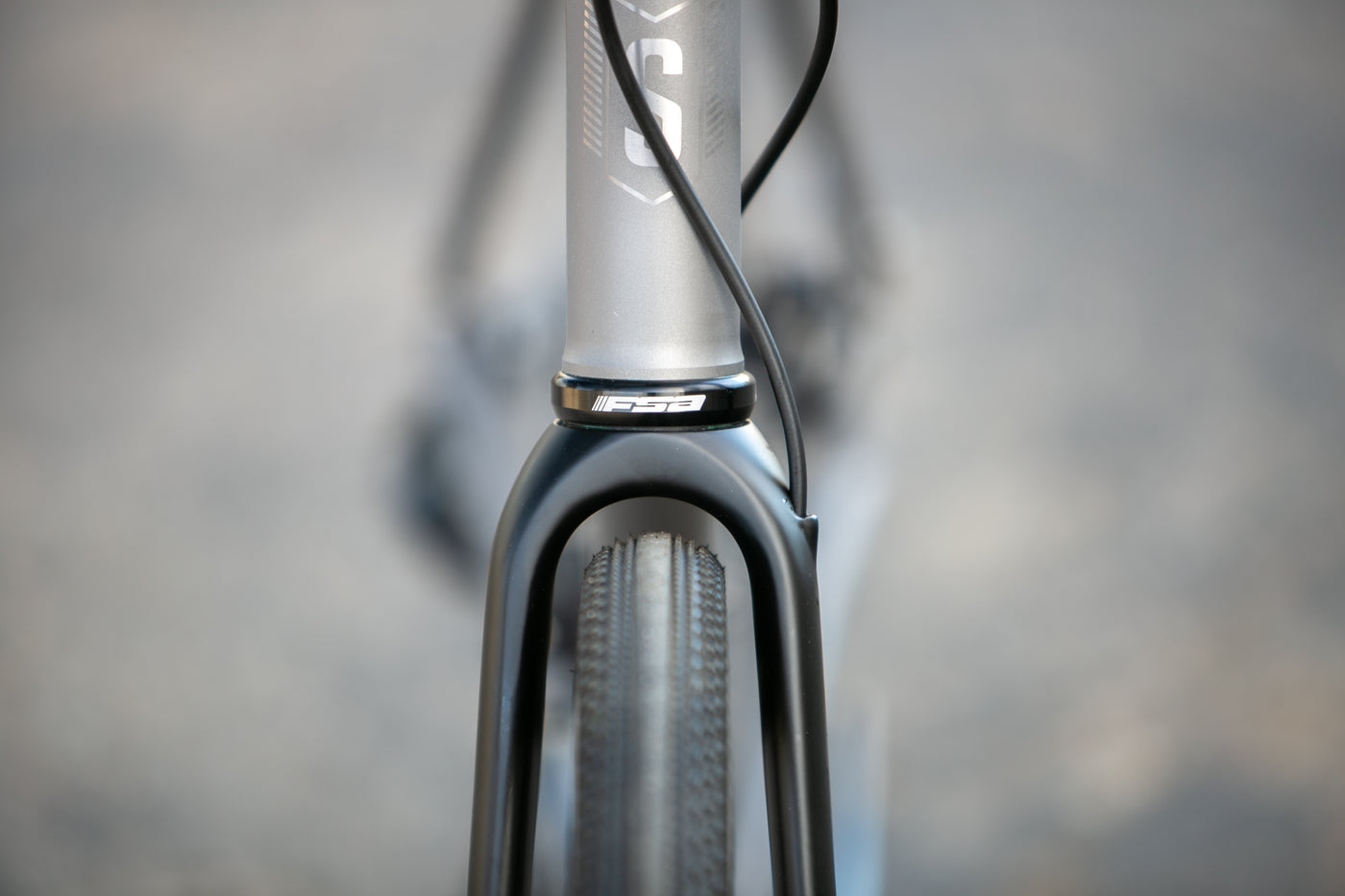

Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40

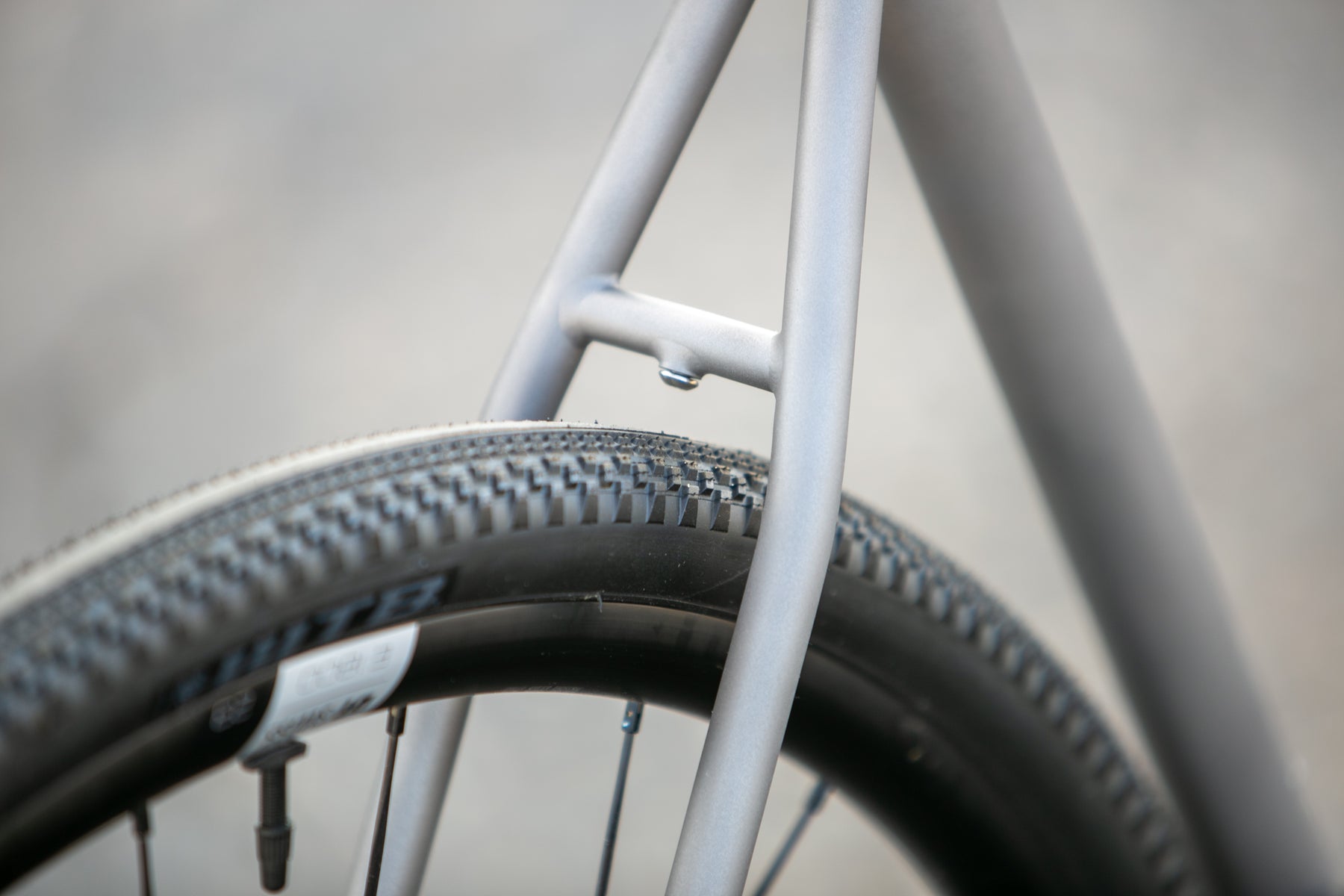

Mounts // Fender Mounts - 3 bottle cage locations

FORK //

Material // Full Carbon

MAX Tire Clearance // 700 x 40mm

MAX Tire Clearance w/ Fenders // 700 x 35mm

Dropout Spacing // 100 x 12mm

Front Axle // 120mm - M12 x 1.5

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // External (Internal through non-drive leg)

Steerer // 1.5" Tapered

Steerer Length // 350mm

Crown Race // 40mm

Axle to Crown // 382mm

Rake // 47mm

Mounts // Fender Mounts

Build Kit Details //

COCKPIT //

Stem // Easton EA70 Alloy - 50cm/52cm: 80mm length // 54cm/56cm: 90mm length // 58cm/60cm: 100mm length

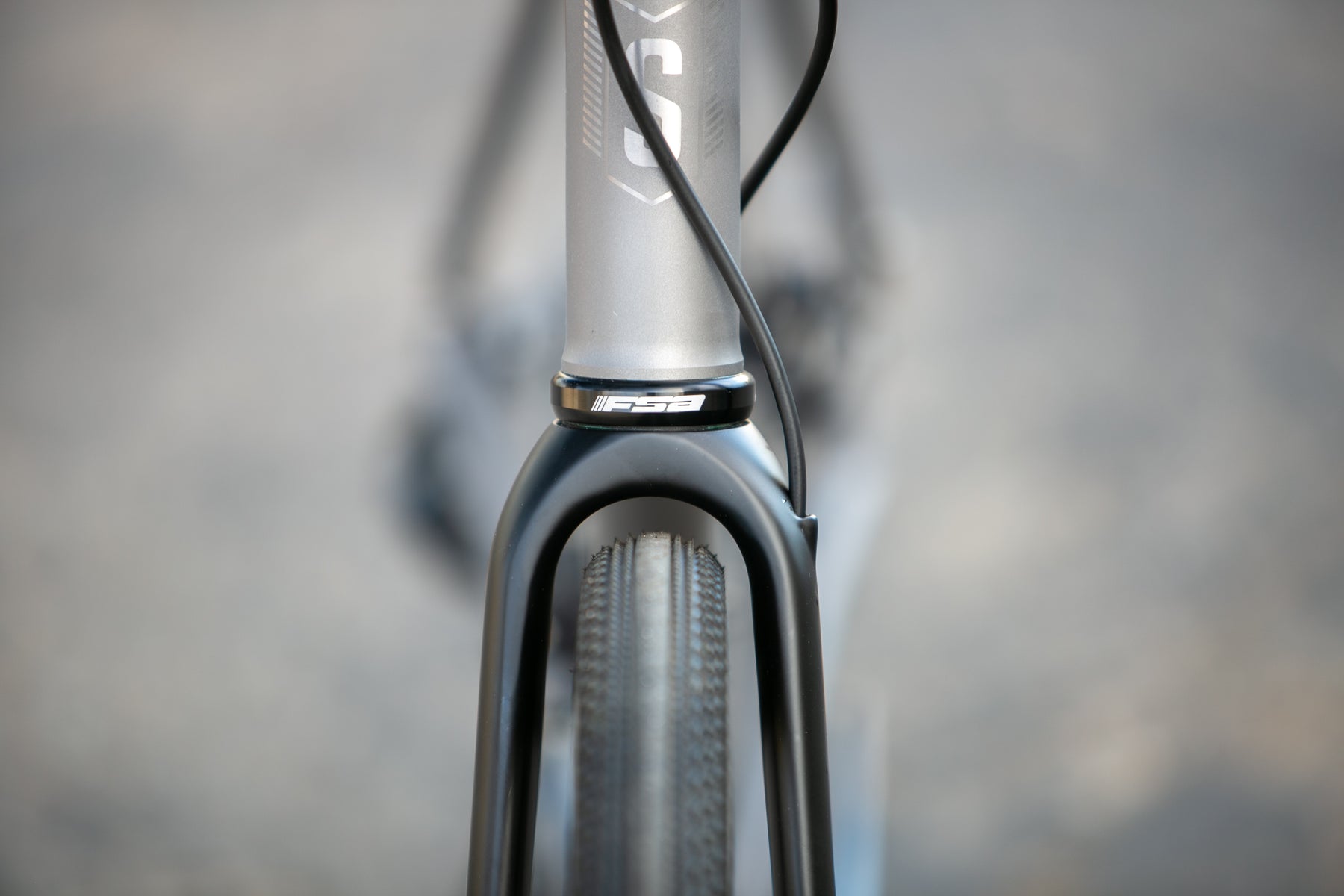

Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

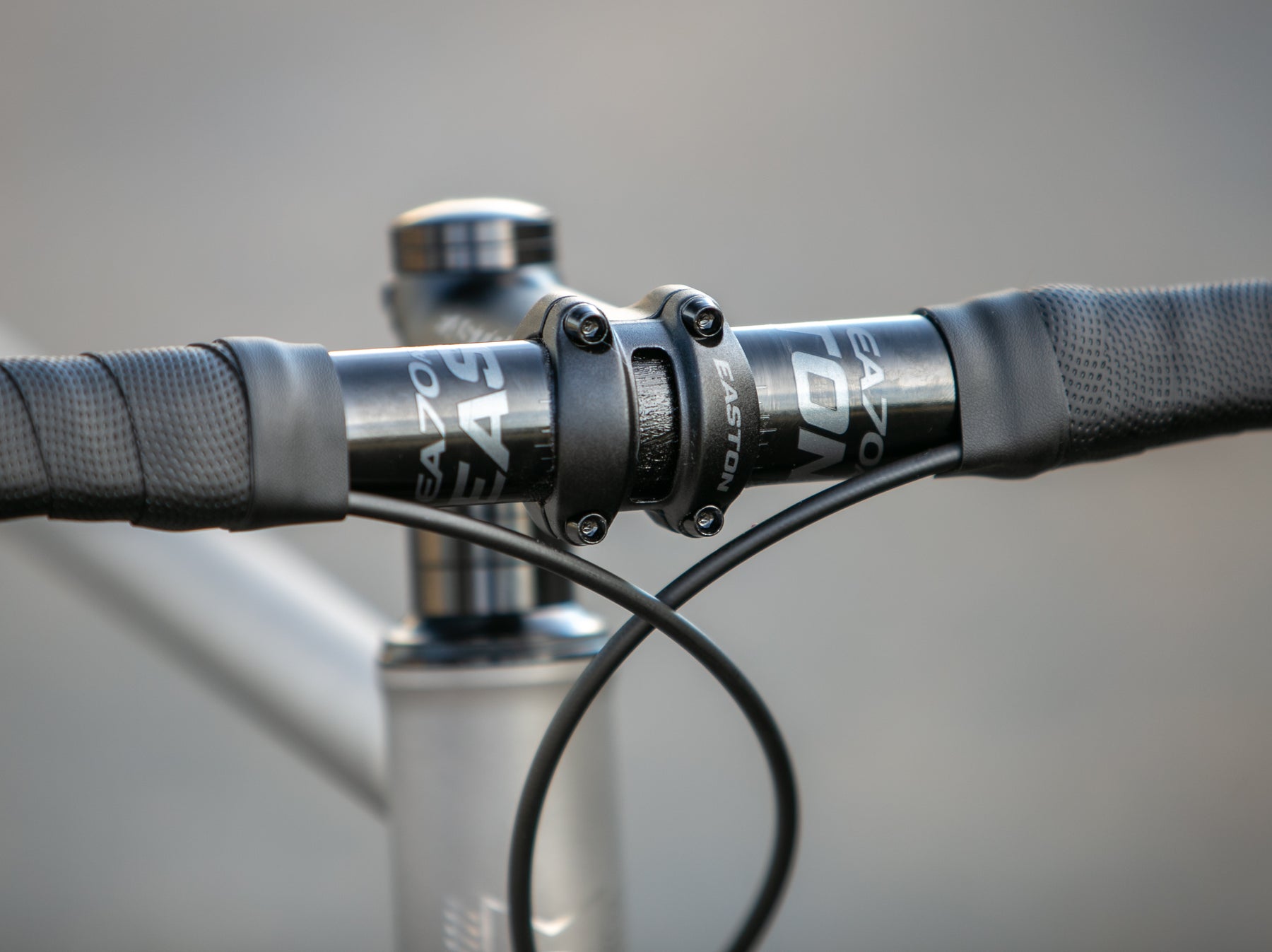

Handlebar // Easton EA70 AX Alloy - Reach: 80mm, Drop: 120mm, Flare: 16° - 50cm/52cm: 40cm width // 54cm/56cm: 42cm width // 58cm/60cm: 44cm width

Bar Tape // Stinner Select - Black

Seatpost // Easton EC70 ISA Carbon - 27.2mm x 350mm length, 20mm offset

Seat Collar // Stinner Select 31.8mm

Saddle // WTB Silverado 265 Medium 142mm, Titanium rails

Pedals // Not Included

DRIVETRAIN //

Bottom Bracket // SRAM DUB T47 68mm

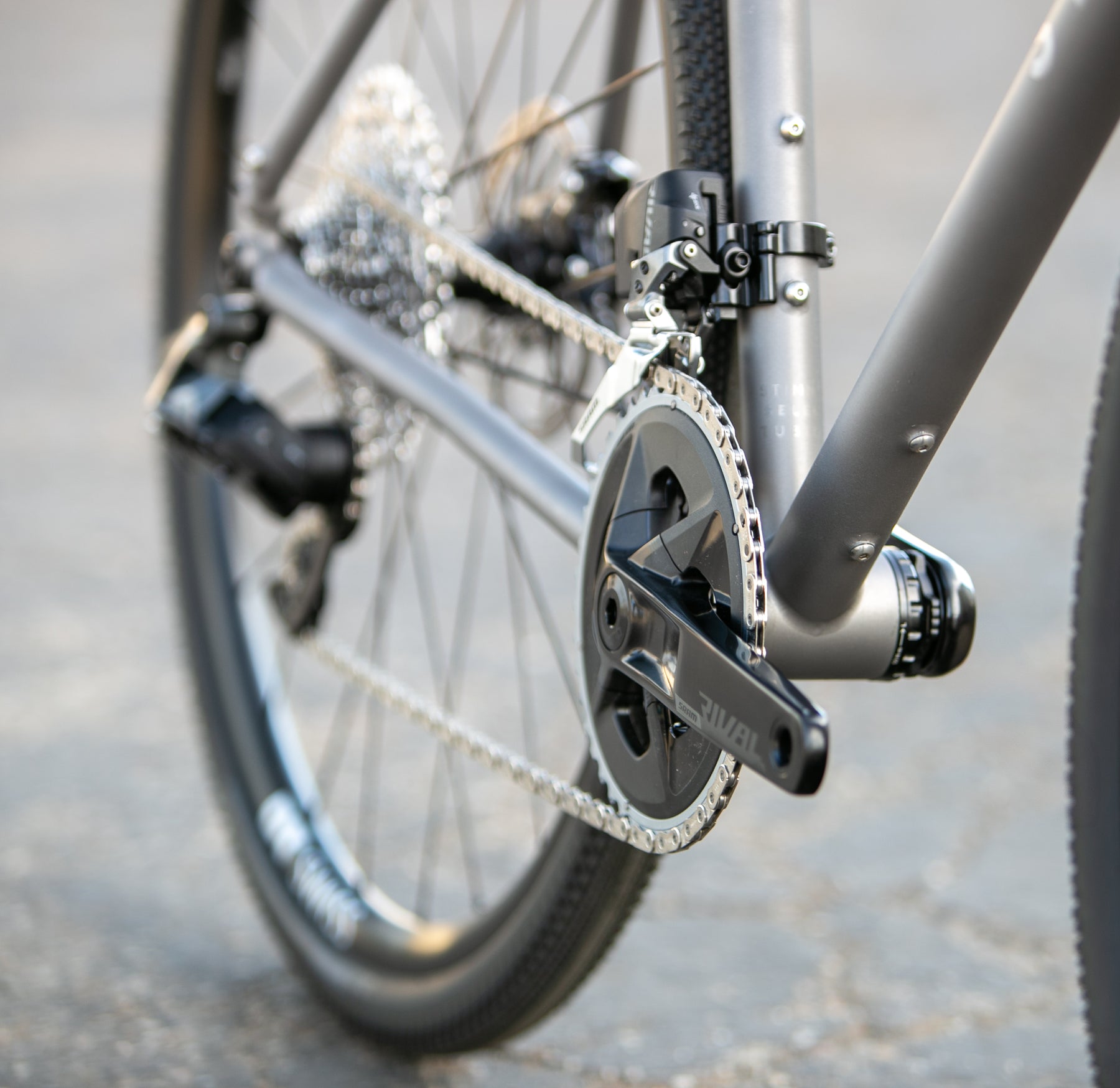

Crankset // SRAM Rival 2x WIDE - 50cm/52cm: 170mm length // 54cm/56cm: 172.5mm length // 58cm/60cm: 175mm length

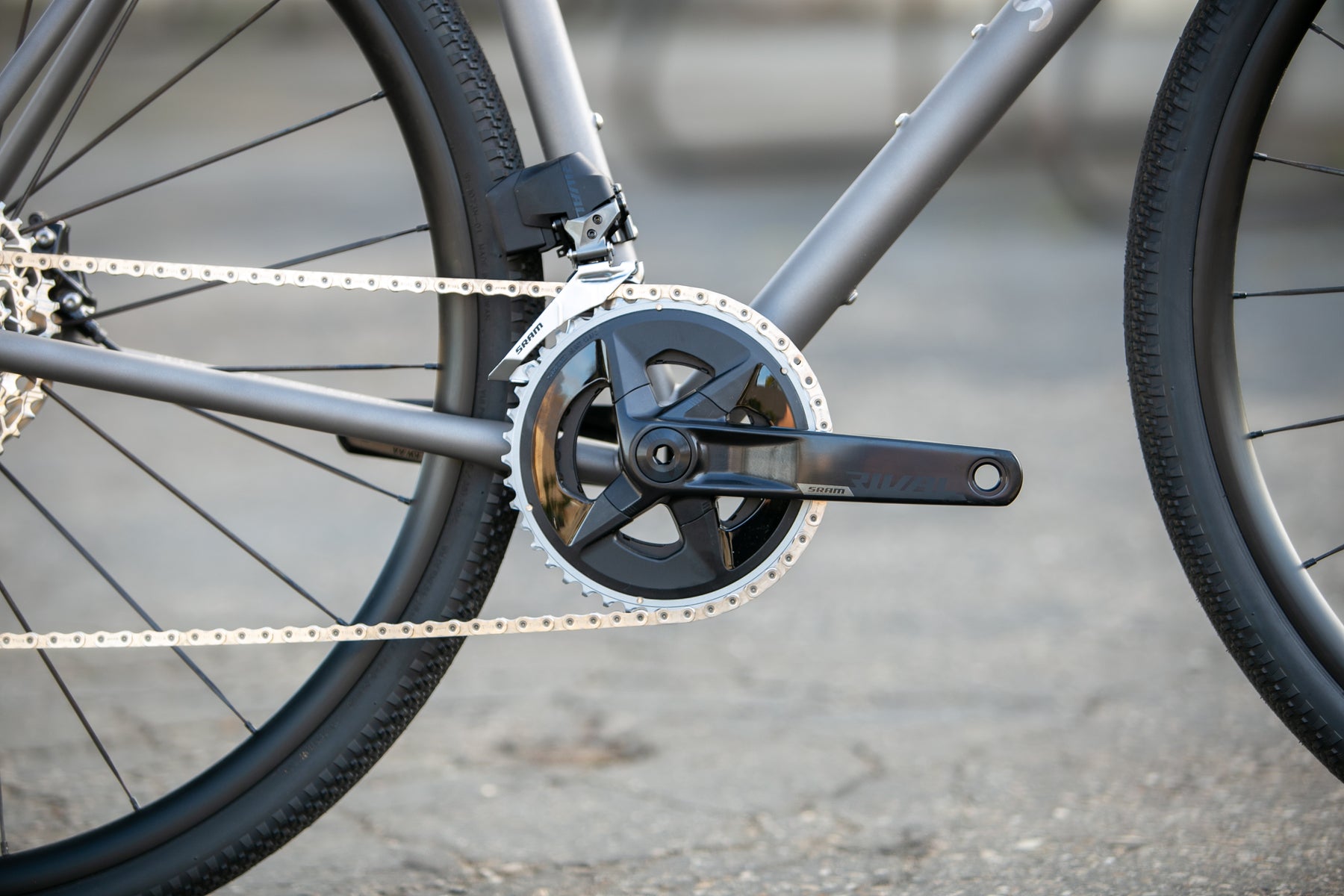

Chainrings // SRAM Rival 43/30t

Chain // SRAM Rival Flat Top 12spd

Cassette // SRAM Rival 12spd 10/36t

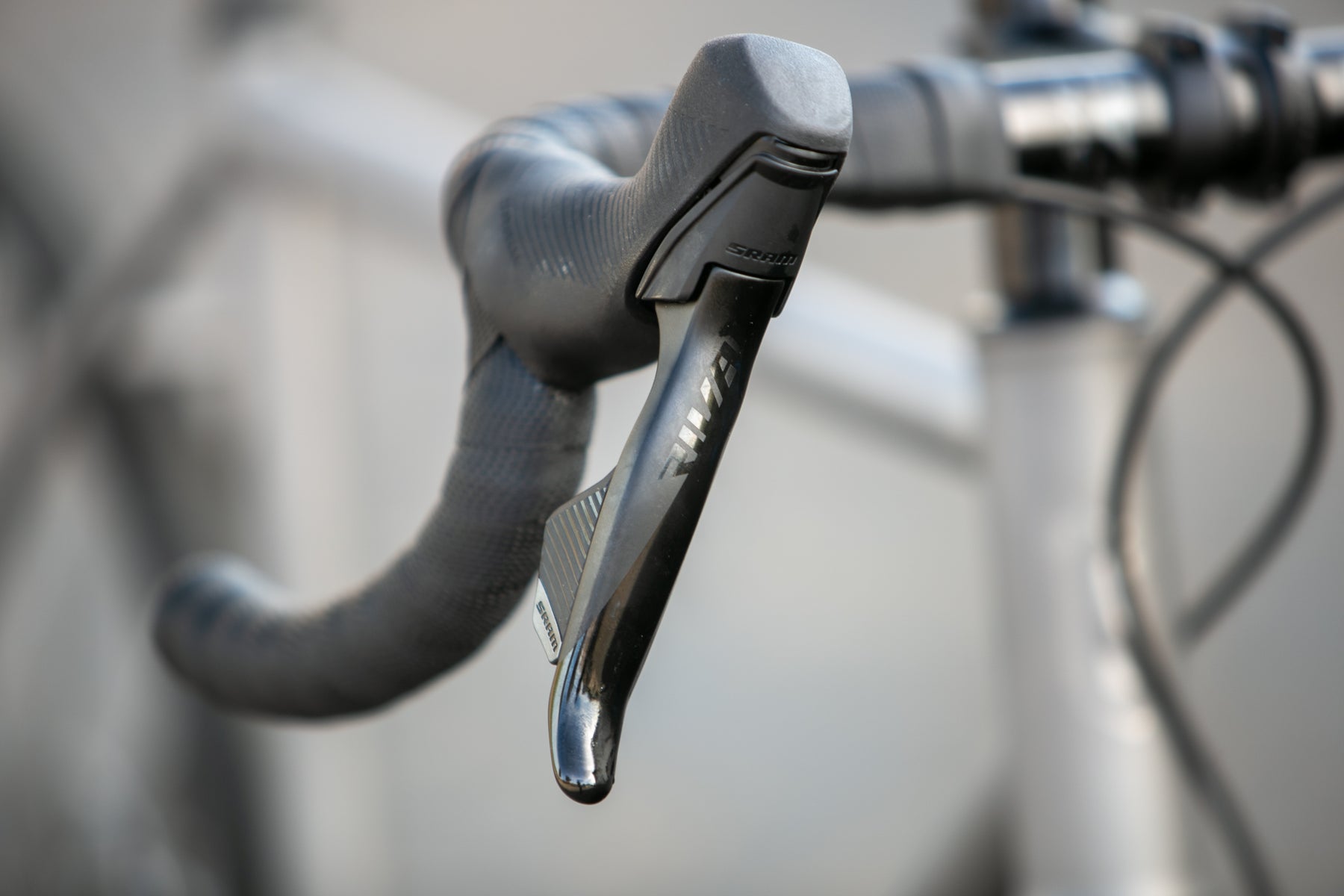

Front Shifter // SRAM Rival AXS

Rear Shifter // SRAM Rival AXS

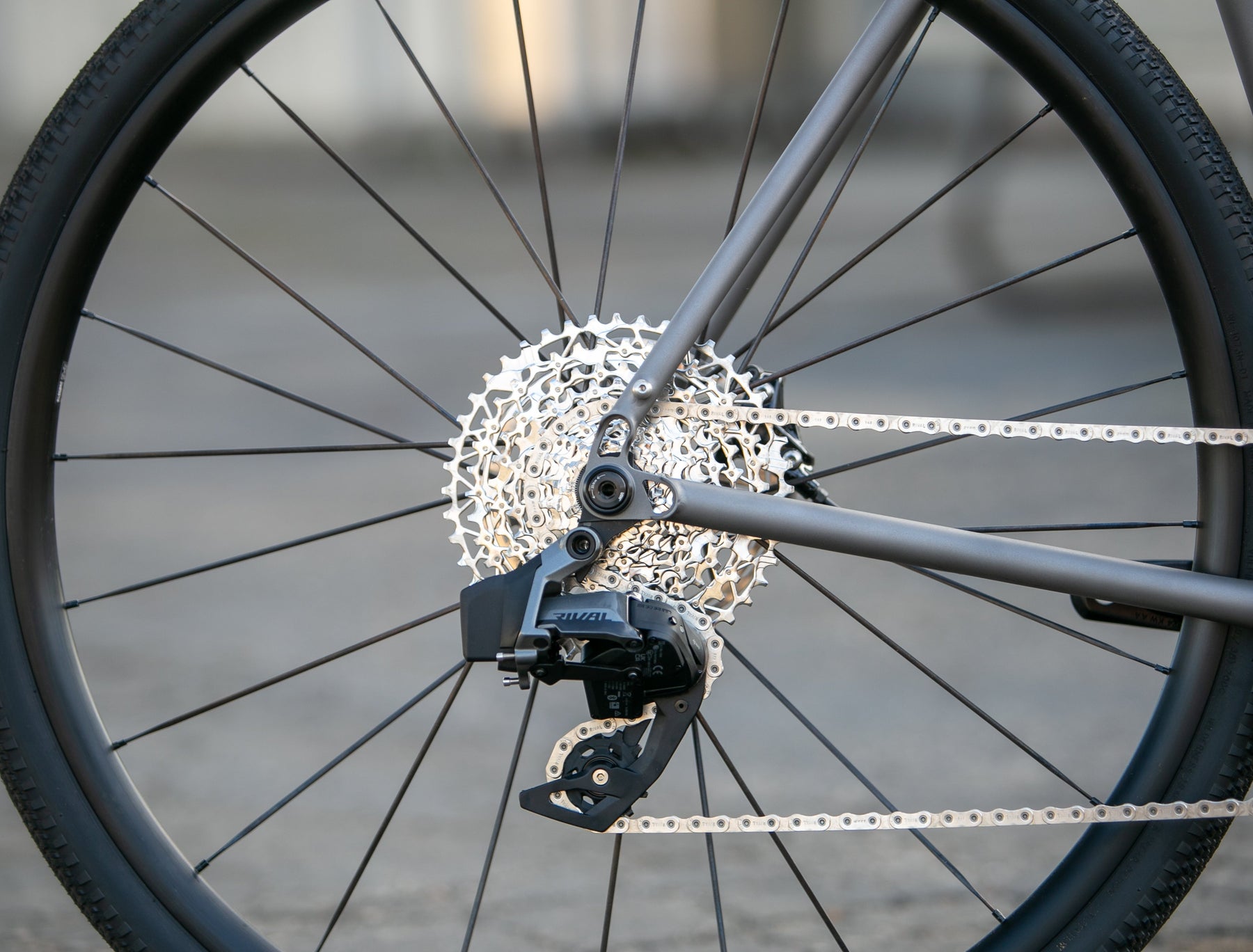

Rear Derailleur // SRAM Rival AXS 12spd

Front Derailleur // SRAM Rival AXS WIDE

Front Brake // SRAM Rival Hydraulic

Rear Brake // SRAM Rival Hydraulic

Front Rotor // SRAM Paceline Centerlock 160mm

Rear Rotor // SRAM Paceline Centerlock 160mm

Charger // SRAM AXS Charger

Battery // SRAM AXS Battery

Hanger // UDH

WHEELSET //

Front Wheel // DT Swiss E1800 Spline 23, Tubeless, 100x12mm, 24h, Center Lock

Rear Wheel // DT Swiss E1800 Spline 23, Tubeless, 142x12mm, 24h, Center Lock, XDR Driver

Front Tire // WTB Vulpine, TCS, SG2, 700x40c

Rear Tire // WTB Vulpine, TCS, SG2, 700x40c

Build Kit Details //

COCKPIT //

Stem // Easton EA70 Alloy - 50cm/52cm: 80mm length // 54cm/56cm: 90mm length // 58cm/60cm: 100mm length

Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

Handlebar // Stinner Carbon AR - Reach: 75mm, Drop: 125mm, Flare: 9° - 50cm/52cm: 40cm width // 54cm/56cm: 42cm width // 58cm/60cm: 44cm width

Bar Tape // Stinner Select - Black

Seatpost // Easton EC70 ISA Carbon - 27.2mm x 350mm length, 20mm offset

Seat Collar // Stinner Select 31.8mm

Saddle // WTB Silverado 265 Medium 142mm, Titanium rails

Pedals // Not Included

DRIVETRAIN //

Bottom Bracket // SRAM DUB T47 68mm

Crankset // SRAM Force Carbon 2x WIDE - 50cm/52cm: 170mm length // 54cm/56cm: 172.5mm length // 58cm/60cm: 175mm length

Chainrings // SRAM Force 43/30t

Chain // SRAM Force Flat Top 12spd

Cassette // SRAM Force 12spd 10/36t

Front Shifter // SRAM Force AXS

Rear Shifter // SRAM Force AXS

Rear Derailleur // SRAM Force AXS 12spd

Front Derailleur // SRAM Force AXS WIDE

Front Brake // SRAM Force Hydraulic

Rear Brake // SRAM Force Hydraulic

Front Rotor // SRAM Paceline Centerlock 160mm

Rear Rotor // SRAM Paceline Centerlock 160mm

Charger // SRAM AXS Charger

Battery // SRAM AXS Battery

Hanger // UDH

WHEELSET //

Front Wheel // Astral Luna Carbon Rim, Hooked 25mm internal, 40mm depth, Tubeless, Astral Stage 1 hub, 100x12mm, Center Lock

Rear Wheel // Astral Luna Carbon Rim, Hooked 25mm internal, 40mm depth, Tubeless, Astral Stage 1 hub, 142x12mm, Center Lock, XDR Driver

Front Tire // WTB Vulpine S, TCS, SG2, 700x40c

Rear Tire // WTB Vulpine S, TCS, SG2, 700x40c

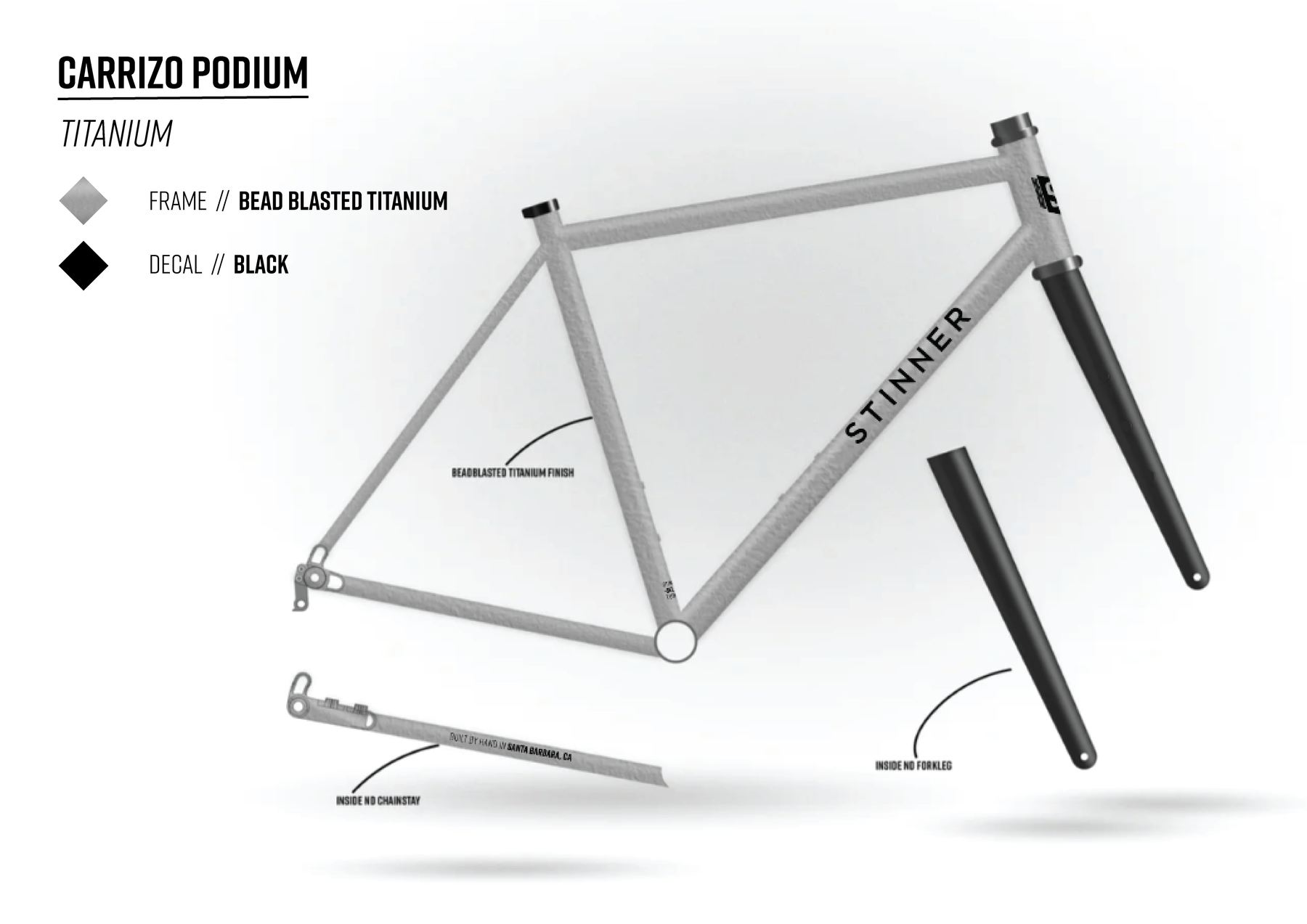

GEOMETRY CHART & FRAME DRAFTS //

With a Complete //

All parts listed under the complete build kit specifications will be fully installed, tuned, and ready to ride*

*Some assembly will be required out of the box

Wheels // Will ship setup tubeless with sealant installed

Charger // SRAM AXS single battery charger

Documentation // Welcome to the Stinner Family

With a Frameset //

Fork // Carrizo Carbon Fork

Headset // Not Included - CLICK HERE for compatible headset options

Hanger // SRAM UDH

Rear Axle // Stinner Select UDH - 166mm x M12 x 1.0

Front Axle // Stinner Select - 120mm x M12 x 1.5 w/ Brass Washer

Bottle Boss Bolts // QTY. 10 Stainless Bolts

Chainstay Protector // Clear Vinyl - Installed

Brake Sleeve // Foam brake sleeve for internal DT portion

Flat Mount Bolts // Rear - 22mm long w/washers

Expander Plug // Stinner Select Expander Plug for Carbon Steerer

Seat Post Clamp // Stinner Select 31.8mm

Documentation // Welcome to the Stinner Family

What other drivetrains work well on the Carrizo Podium?

- Any SRAM AXS (Wireless) drivetrain works great. If using a 1x drivetrain be sure to spec a WIDE version of the crankset you intend to use. If you opt for a 2x drivetrain your largest chainring combination should not exceed 46/33t (See Frameset Technical Specifications).

- Any Shimano Di2 12spd drivetrain will fit up nicely. The frame features a port for the front derailleur E-Tube wire and the driveside dropout breather hole is large enough for the rear E-Tube wire to pass through. If you opt for a 2x set-up your largest chainring combination should not exceed 50/34t (See Frameset Technical Specifications).

I am thinking of running mechanical disc brakes, do they all work?

- The Carrizo Select is optimized for flat mount hydraulic brakes (See Frameset Technical Specifications). While there are many cable actuated flat mount disc brakes that will work well (TRP Spyre, Growtac Equal), there are some that do not work well due to how the cables need to route (Paul Klampers).

Can you tell me more about the Bead Blasted Finish?

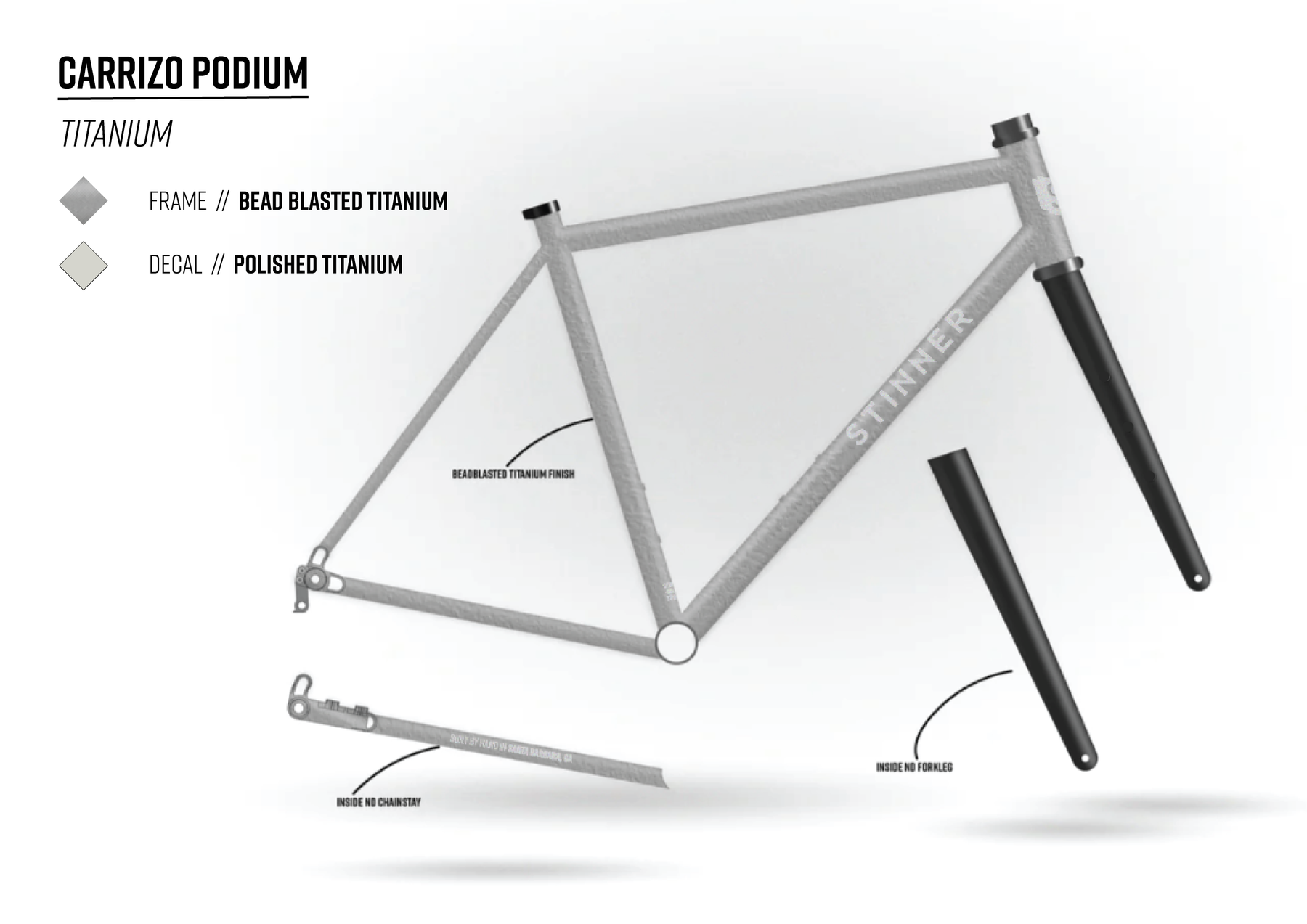

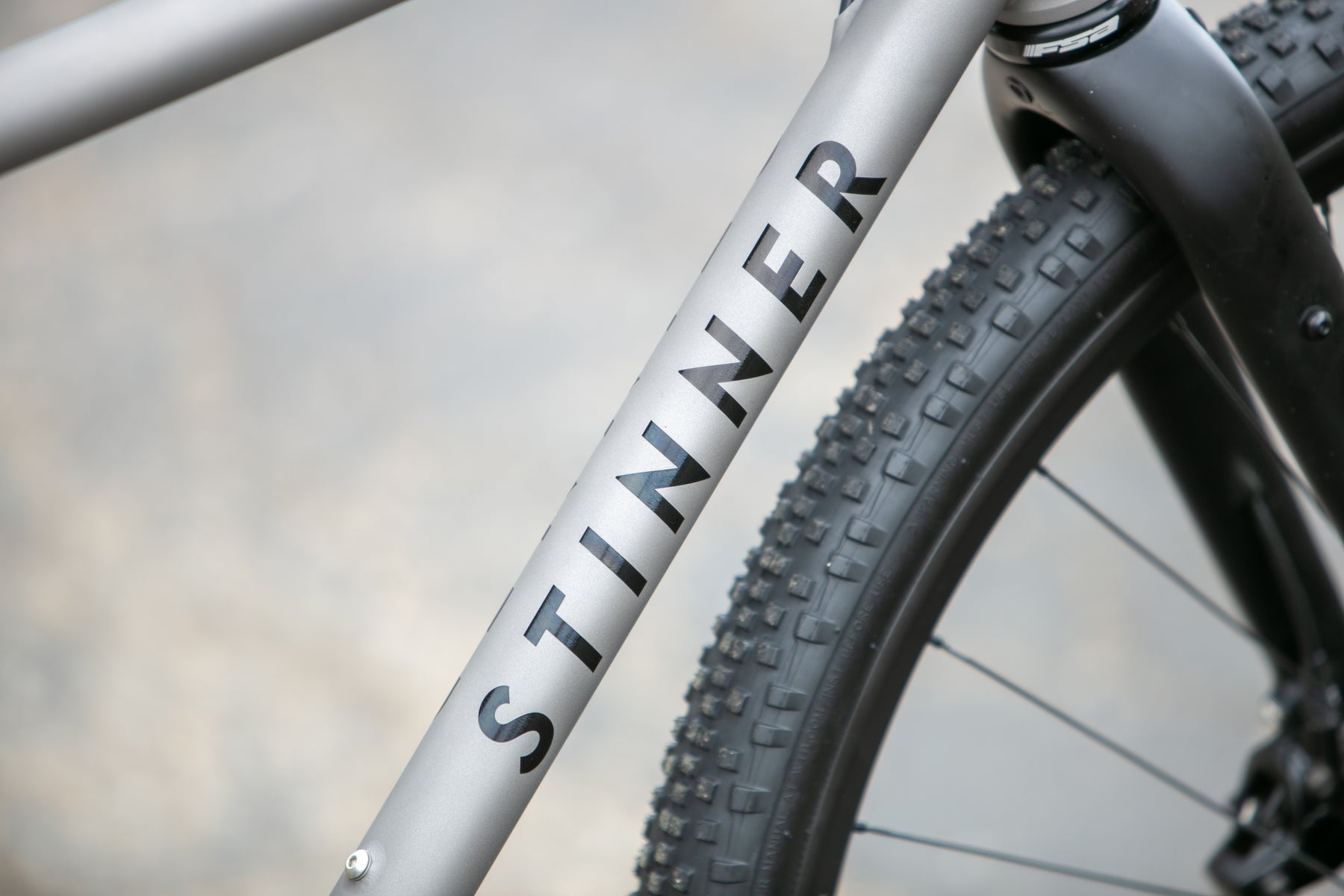

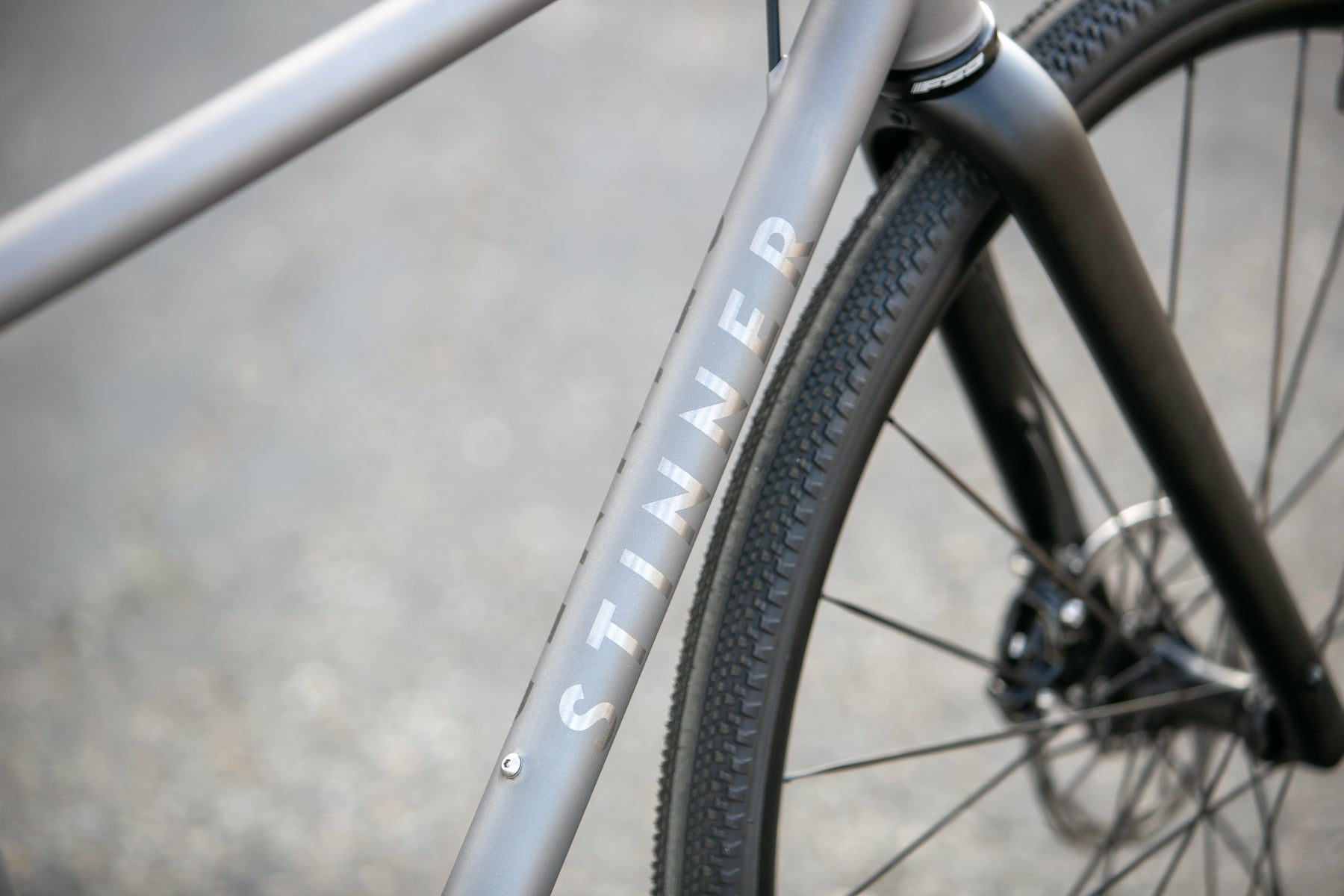

- Both decal options will come with the same bead blasted frame finish. We take the raw titanium frame and bead blast it to give it a nice, uniform matte finish for a timeless look. Titanium does not corrode, so there is no need to seal the frame with a top coat.

If you choose Polished Ti Decals, all the Stinner decals will be raw titanium that we hand polish to give a bright, gloss finish. A subtle contrast to the bead blasted finish.

If you choose Black Decals all the Stinner decals will be a satin black finish. The bolder option for those who want to show their appreciation for this made in the USA frame.

Can you help me understand chainline for the Carrizo Select?

The Carrizo Select can be run with a 1x crankset or a 2x set-up.

The minimum chainline to ensure proper fitment of a 1x chainring is 47.5mm. That means that the center of the chainring teeth sit 47.5mm outboard from the centerline of the frame. The max chainring that will fit with a 47.5mm chainline is a 44t. Other set-ups might work, but we cannot ensure fitment if your set-up is anything other than the stated 47.5mm 1x chainline.

To check your 1x chainline you can measure the distance from your chainring teeth to the closest point on the seat tube. Take that measurement and add 14.5mm (29mm thickness of the Carrizo seat tube divided in half).

The minimum chainline to ensure proper fitment of a 2x set-up is 44.5mm. The chainline on a 2x chainring set-up is measured from the center of the distance between the two chainrings. The max chainring combination that will fit with a 44.5mm chainline is a 50/34t. Other set-ups might work, but we cannot ensure fitment if your set-up is anything other than the stated 44.5mm 2x chainline or if you run larger than 50/34t chainrings.

To check your 2x chainline you can measure the distance from your outer chainring teeth to the closest point on the seat tube. Repeat that for the inner chainring. Subtract the inner ring distance from the outer ring distance and divide that number by half. Add that value to the inner ring distance then add 14.5mm (29mm thickness of the Carrizo seat tube divided in half).

MORE INFO COMING...

If you have a question that you cannot find the answer to please use the below "Ask a Question" form.
