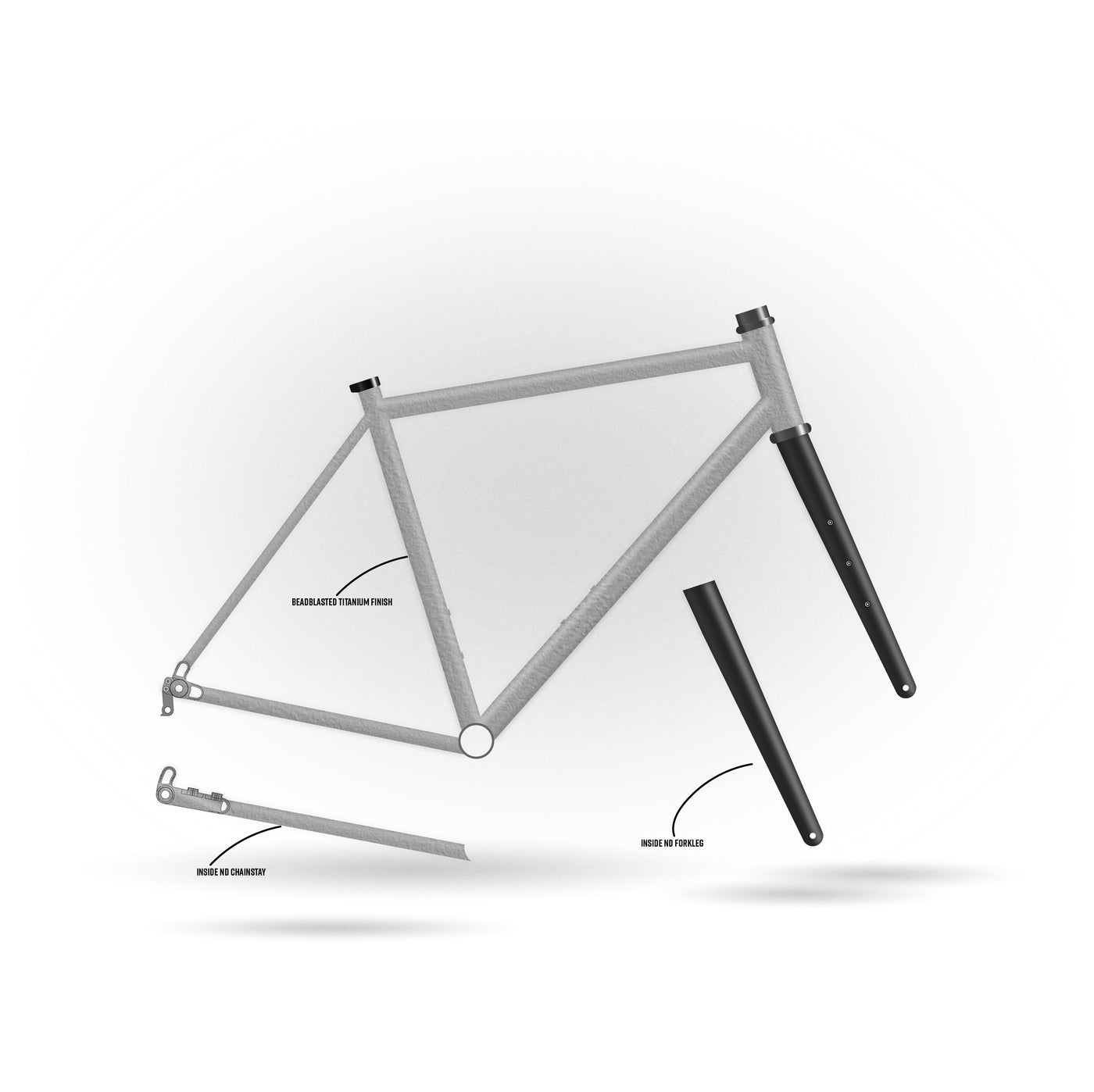

Refugio - Beadblasted Ti

$4,599.00
Please be patient while the configurator options load.
For best viewing, turn computer or phone brightness all the way up!
Size chart

 2025 - REFUGIO - GRAVEL



Refugio 50 52 54 56 58 60
A Stack 545 560 575 595 610 640
B Reach 387 395 400 405 410 418
C Top Tube Length, Horizontal 540 554 569 582 594 614
D Head Tube Length 97 112 129 149 167 197
E Head Tube Angle 71.25° 71.5° 71.75° 72° 72.25° 72.5°
F BB Height* 282 282 284 284 287 287
G BB Drop 82 82 80 80 77 77
H Seat Tube Angle 74.5° 74.25° 73.75° 73.5° 73.25° 73°
I Trail* 71 69 67 66 64 62
J Front Center 603 613 621 630 638 652
K Chainstay Length 438 438 438 438 438 438
L Wheelbase 1027 1038 1047 1056 1064 1079
M Standover Height 762 778 797 816 836 861
N Seat Tube Length (center - top) 470 490 510 530 550 570

 *w/ 50c tires - 728mm Diameter

All Measurements in mm


  • Free shipping within the US

Get it between -

How to Submit an Order:
Step 1: Add to Cart // Review Order Options In Cart
Step 2: Add Order Notes // Checkout
Step 3: Use "Submit Order" Payment Option
Step 4: We will be in touch to finalize your Stinner Refugio details.
* We are currently working on a way to save your configured bike, but as of now, we don't have a way to save your selection. If you want to save your configured bike, please take a screen shot for future reference. Thanks!

FRAME

Drivetrain Compatibility // SRAM eTap - Transmission Compatible

Hanger // SRAM UDH

Tire Range // 700 x 40 - 50c

MAX Tire Clearance // 700 x 50mm

MAX Chainring Clearance // 1x: 42t

Dropout Spacing // 142 x 12mm

Brake Mount // Flat Mount 160mm

MAX Rotor Size // 160mm

Brake Routing // Fully integrated routing through Bar/Stem/Frame

Seapost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm for Titanium - 29.8mm for Steel

Front Derailleur Clamp Diameter // N/A

Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: EC44/40 Lower: EC44/40 - Internally Routed Top Assembly

Accessories // Fender Mounts - 3rd bottle mount under downtube

FORK

MAX Tire Clearance // 700 x 50mm

Dropout Spacing // 100 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Full Internal - Hose Exits in Steerer

Steerer // 1.5" Tapered

Steerer Length // 350mm

Crown Race // 40mm

Axle to Crown // 398mm

Rake // 50mm

Accessories // Fender Mounts, Manything Cage Mounts on each leg, Internal Dynamo Routing, Light Mount

 2025 - REFUGIO - GRAVEL



Refugio 50 52 54 56 58 60
A Stack 545 560 575 595 610 640
B Reach 387 395 400 405 410 418
C Top Tube Length, Horizontal 540 554 569 582 594 614
D Head Tube Length 97 112 129 149 167 197
E Head Tube Angle 71.25° 71.5° 71.75° 72° 72.25° 72.5°
F BB Height* 282 282 284 284 287 287
G BB Drop 82 82 80 80 77 77
H Seat Tube Angle 74.5° 74.25° 73.75° 73.5° 73.25° 73°
I Trail* 71 69 67 66 64 62
J Front Center 603 613 621 630 638 652
K Chainstay Length 438 438 438 438 438 438
L Wheelbase 1027 1038 1047 1056 1064 1079
M Standover Height 762 778 797 816 836 861
N Seat Tube Length (center - top) 470 490 510 530 550 570

 *w/ 50c tires - 728mm Diameter

All Measurements in mm



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Single Track Ready
700 x 50c Tire

Plenty of tire clearance to get you where you are going. Most "gravel" terrain these days demands a large volume tire to access remote locations comfortably and confidently.

No cables to be seen
Full Internal

The Refugio features a fully internal cockpit. No longer does your handlebar bag have to fight your brake hoses. Choose from Chris King, ENVE, or FSA.

Designed by us
Titanium UDH Dropouts

Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our own parts to build a better product.

Bigger is better
T47 Bottom Bracket

Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.

FAQs

We have a size chart here for the Refugio model with all of the XY measurements to help you find the perfect fit.

We'd love to customize a bike to fit your needs. To do so, we ask that you submit a professional fit document along with your order. You will find the link to submit that under the 'Size' dropdown in the configurator. Once we receive it, we will review it and get back to you with a custom draft. If you are unsure if you need a custom size, please feel free to reach out and ask.

We like to think that we offer the best colors available already, on the configurator. If you have a color you would like to explore, let us know. We do charge extra for color exploration. Charges vary depending on the color request. Feel free to reach out to us to get the conversation started.

Right now, we recommend taking a screenshot of your design! Throw it in a folder, print it out, pin it to a wall, think on it, send it in!

We are working on getting our store populated with real life paint swatches for you to purchase. We have done our best to represent these colors digitally. Please make sure to turn the brightness on your device all the way up for the best color reference.
