Carrizo - Quad

$4,349.00
Please be patient while the configurator options load.
Size chart

2025 - CARRIZO - ALL ROAD


Carrizo 50 52 54 56 58 60
A Stack 526 539 556 577 603 624
B Reach 377 382 388 392 399 407
C Top Tube Length, Horizontal 525 538 553 563 581 598
D Head Tube Length 98 110 128 148 175 195
E Head Tube Angle 71° 71.5° 72° 72.5° 72.5° 73°
F BB Height* 277 277 279 279 279 279
G BB Drop 77 77 75 75 75 75
H Seat Tube Angle 74.5° 74° 73.5° 73.5° 73.25° 73°
I Trail* 72 69 66 62 62 59
J Front Center 586 591 598 604 619 628
K Chainstay Length 426 426 426 426 426 426
L Wheelbase 1000 1005 1013 1019 1034 1043
M Standover Height 755 771 790 811 833 853
N Seat Tube Length (center - top) 480 500 520 540 560 580

 *w/ 40c tires - 708mm Diameter

All Measurements in mm


  • Free shipping within the US

Get it between -

How to Submit an Order:
Step 1: Add to Cart // Review Order Options In Cart
Step 2: Add Order Notes // Checkout
Step 3: Use "Submit Order" Payment Option
Step 4: We will be in touch to finalize your Stinner Carrizo details.
* We are currently working on a way to save your configured bike, but as of now, we don't have a way to save your selection. If you want to save your configured bike, please take a screen shot for future reference. Thanks!

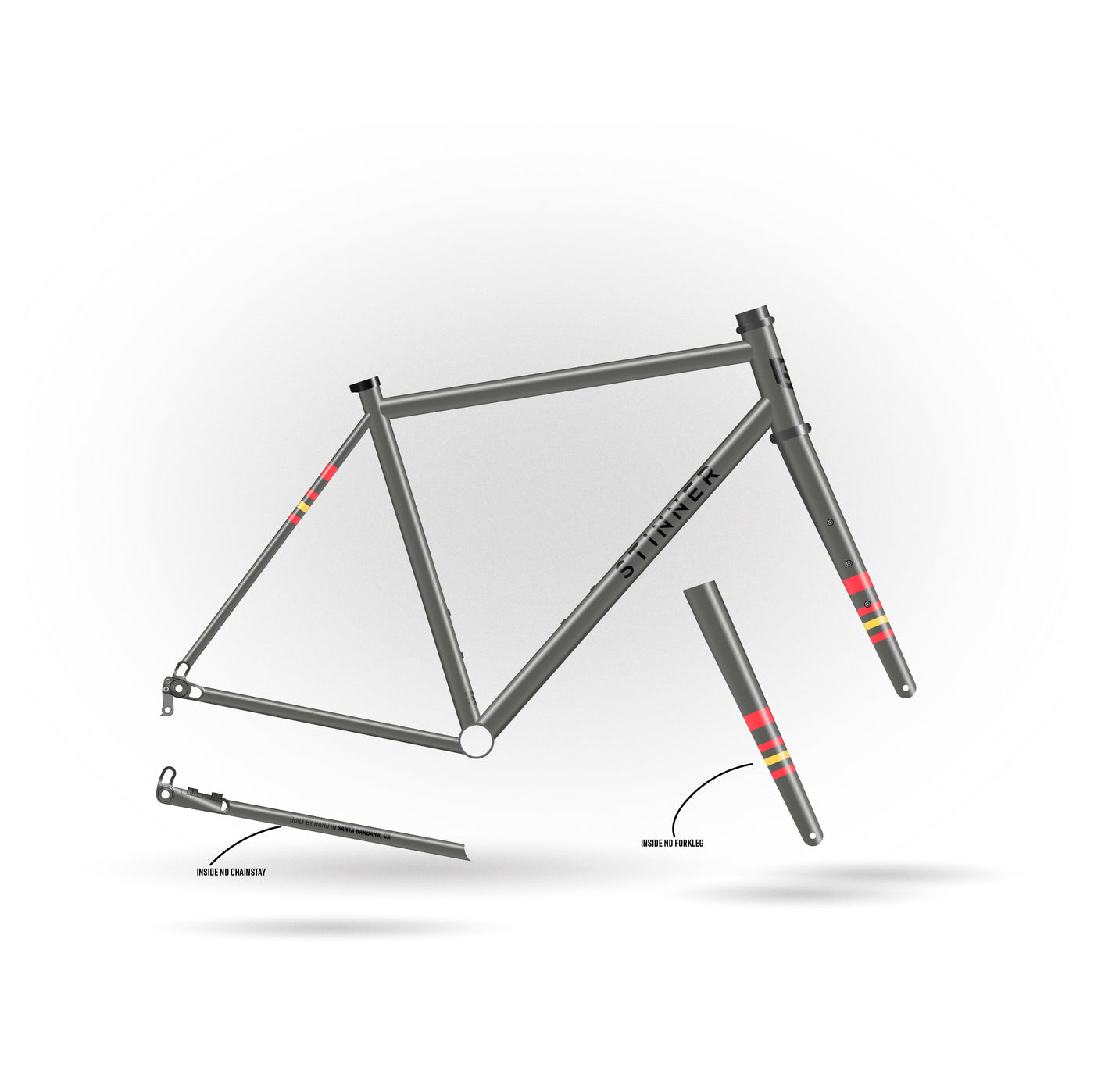

FRAME

Drivetrain Compatibility // SRAM eTap AXS / Shimano Di2 12spd / Campagnolo Wireless

Tire Range // 700 x 32 - 40c

MAX Tire Clearance // 700 x 40mm

MAX Chainring Clearance // 2x: 50/34t 1x: 42t

Dropout Spacing // 142 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Fully integrated routing through Bar/Stem/Frame

Seapost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm for Titanium - 29.8mm for Steel

Front Derailleur Clamp Diameter // 31.8mm for Titanium - 28.6mm for Steel

Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: EC44/40 Lower: EC44/40 - Internally Routed

Accessories // Fender Mounts - 3rd bottle mount under downtube

FORK

MAX Tire Clearance // 700 x 40mm

Dropout Spacing // 100 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Full Internal - Hose Exits in Steerer

Steerer // 1.5" Tapered

Steerer Length // 350mm

Crown Race // 40mm

Axle to Crown // 382mm

Rake // 47mm

Accessories // Fender Mounts

2025 - CARRIZO - ALL ROAD


Carrizo 50 52 54 56 58 60
A Stack 526 539 556 577 603 624
B Reach 377 382 388 392 399 407
C Top Tube Length, Horizontal 525 538 553 563 581 598
D Head Tube Length 98 110 128 148 175 195
E Head Tube Angle 71° 71.5° 72° 72.5° 72.5° 73°
F BB Height* 277 277 279 279 279 279
G BB Drop 77 77 75 75 75 75
H Seat Tube Angle 74.5° 74° 73.5° 73.5° 73.25° 73°
I Trail* 72 69 66 62 62 59
J Front Center 586 591 598 604 619 628
K Chainstay Length 426 426 426 426 426 426
L Wheelbase 1000 1005 1013 1019 1034 1043
M Standover Height 755 771 790 811 833 853
N Seat Tube Length (center - top) 480 500 520 540 560 580

 *w/ 40c tires - 708mm Diameter

All Measurements in mm



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Dirt Curious?
700 x 40c Tire

The Carrizo can accommodate up to a 40mm wide tire so it won't hold you back whenever the pavement ends.

No Hoses to be seen
Full Internal

The Carrizo features a fully integrated cockpit to keep it looking tidy. Choose from Chris King, ENVE, or FSA

Designed by us
Titanium Dropouts

Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our parts to build a better product.

Bigger is better
T47 Bottom Bracket

Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.

FAQs

We have a size chart here for the Gibraltar model with all of the XY measurements to help you find the perfect fit.

We'd love to customize a bike to fit your needs. To do so, you'll need to go through the custom bike process. Check out our custom page to see how to order.

Yes, but not in our Made to Order program. You will have to go through our Custom Order process.

Yes, but not in our Made to Order program. You will have to go through our Custom Order process.

Yes, but not in our Made to Order program. You will have to go through our Custom Order process.
